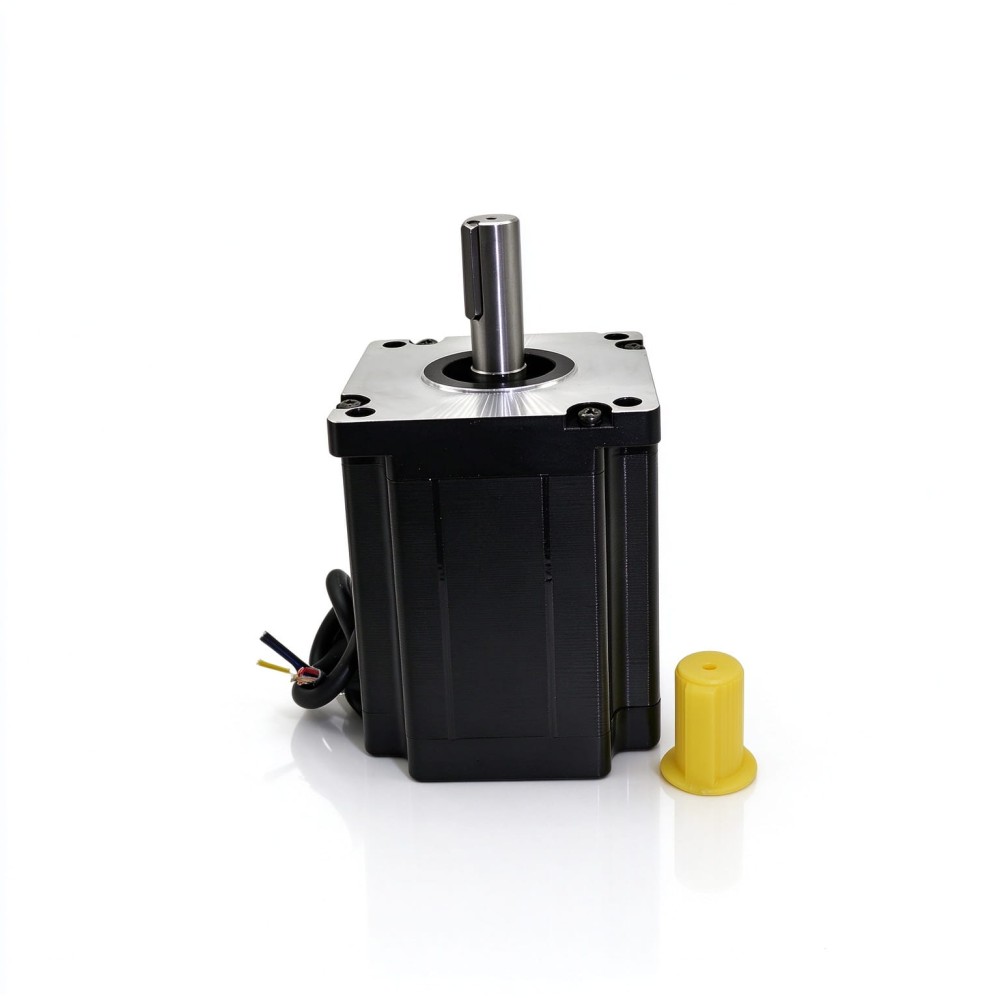

Leadshine Size 110mm Stepper Motor 110CM12 110CM20 110CM28

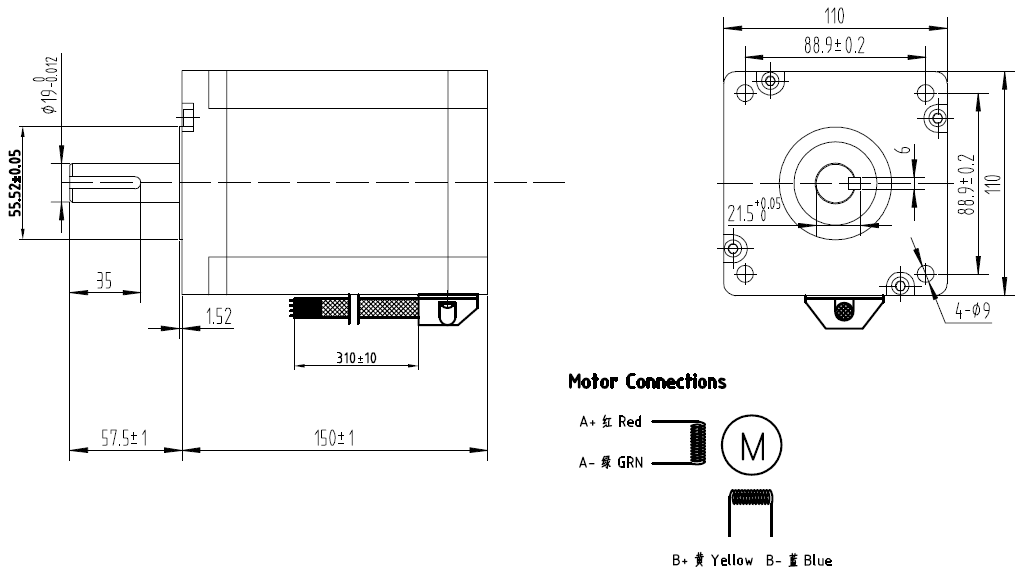

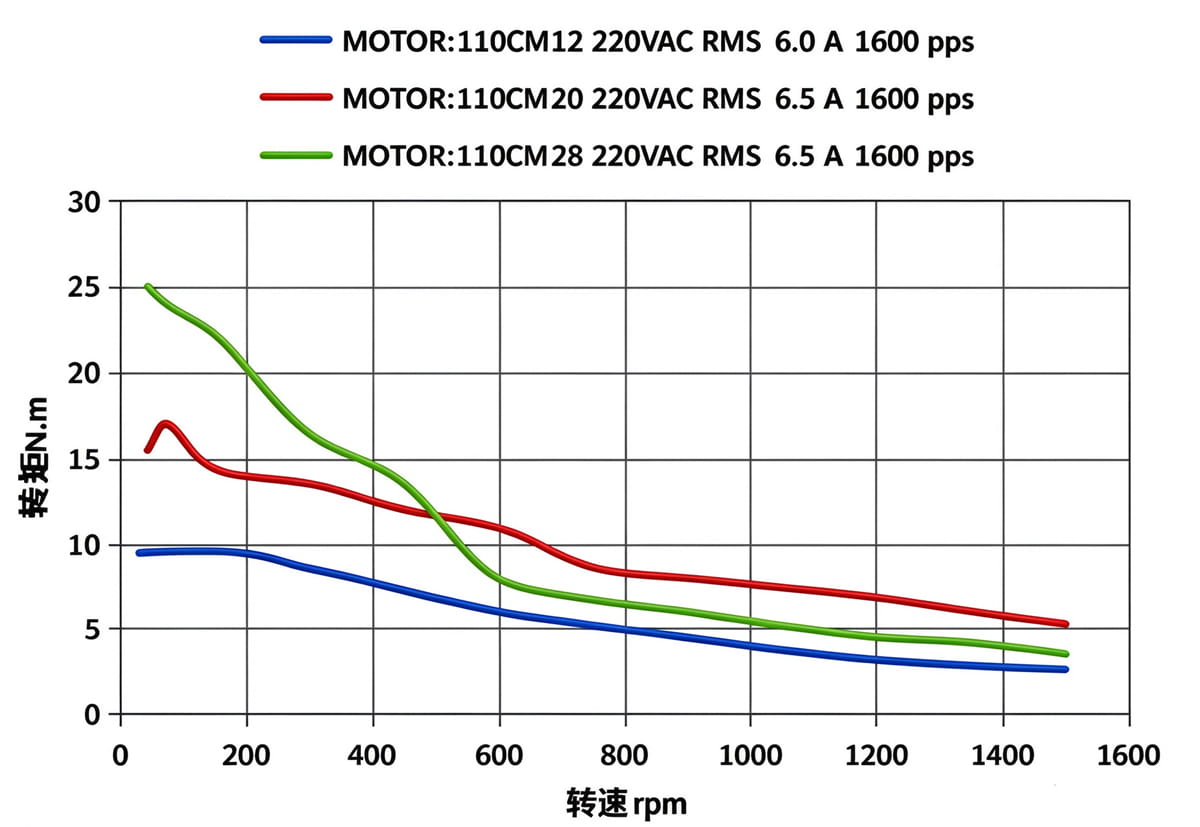

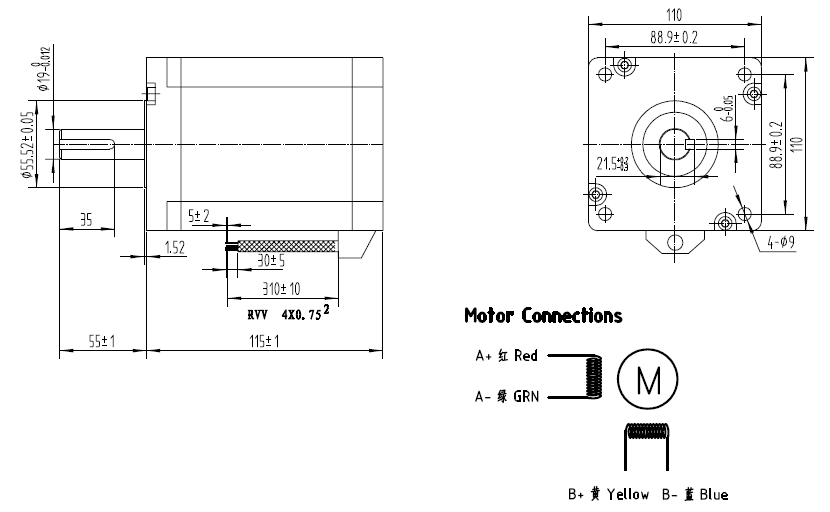

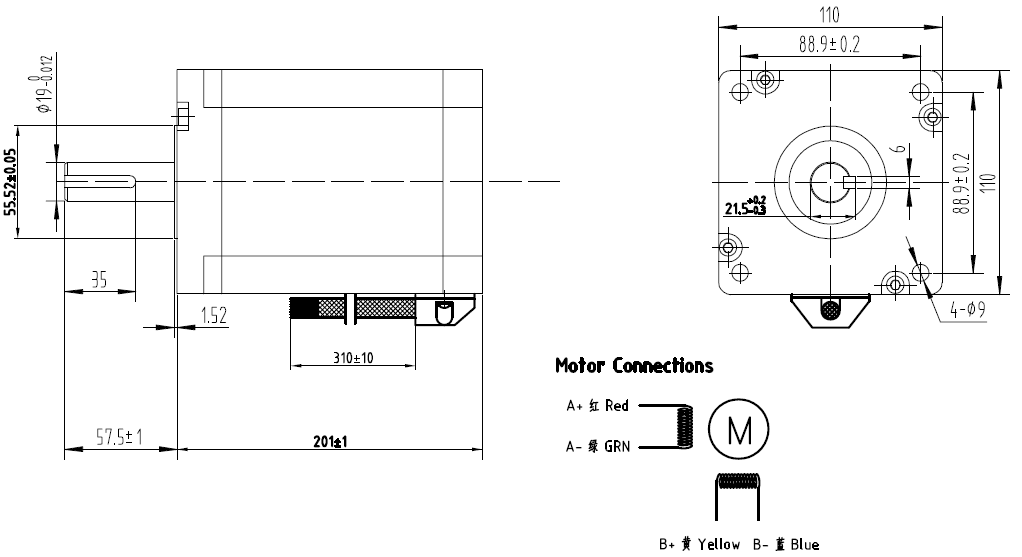

This Leadshine 110 mm (NEMA 42) hybrid stepper motor series includes the 110CM12, 110CM20, and 110CM28 models, offering holding torque options of 12 N·m, 20 N·m, and 28 N·m respectively within a standard 110 × 110 mm frame. Body lengths scale with torque at 115 mm, 150 mm, and 201 mm, while all models share a precise 1.8° step angle, 4-wire bipolar wiring, a Φ19 mm shaft, and IP40 protection. Rated phase current is 6.0 A for the 110CM12 and 6.5 A for the higher-torque models, with the series known for high torque density, low heat generation, low noise, and smooth operation. This combination of scalable high torque and stable performance makes the series well suited to demanding motion axes in CNC routers and engraving machines, laser processing equipment, heavy-duty automation lines, packaging machinery, and industrial robotics requiring reliable open-loop positioning under substantial loads. The matched drive is DM2282. Please specify the model number in the order note.

General Specifications

• Dimensions: 110mm
• Step Angle: 1.8°
• Step Angle Accuracy: 0.09° (No load, full step)
• Temperature Rise 80K
• Operating Environment Temperature: -10 ℃ to +50 ℃;
• Humidity: 85% Max
• Insulation Class: B
• Insulation Resistance: 100 MΩ Min 500 VDC
• Withstand Voltage (Dielectric Strength): 1500 VAC 1 Min
• Radial Runout: 0.025 mm Max (Load 5 N)
• Axial Runout: 0.075 mm Max (Load 10 N)
• Max. Radial Load: 200 N
• Max. Axial Load: 60 N
