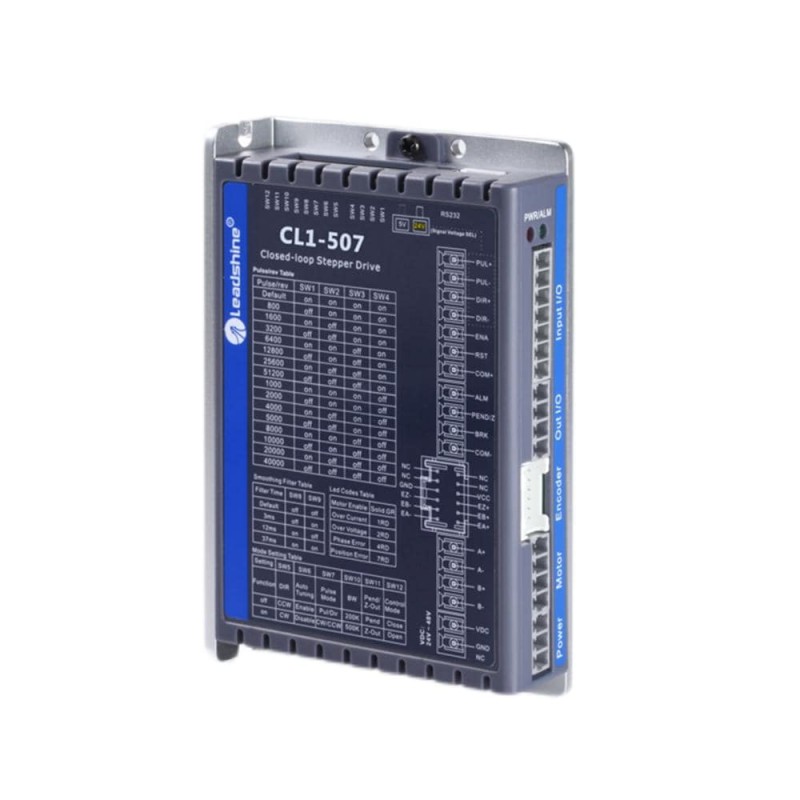

LEADSHINE CL1-507 Closed Loop Stepper Drive 3.0-7.0A 20-50VDC Encoder Z Singal
- Part Number: CL1-507
- Lead Time: In Stock
- Unit Price: $75.00
- Sales: 12
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
LEADSHINE CL1-507 Closed Loop Stepper Drive 3.0-7.0A 20-50VDC Encoder Z Singal
Key Features:
- • 20-50VDC supply voltage, max. 7.0A output current
- • No loss of step, No hunting, No torque reservation, No tuning
- • Step & direction or CW/CCW control modes
- • Enhance performance at low-speed application(30-120 RPM)
- • Max 500 KHz input frequency
- • Brake output without connecting a relay
- • Encoder A/B/Z outputs
- 5V/24V logical voltage selector
Operating Environment and other Specifications:
- Cooling: Natural Cooling or Forced cooling
- Environment: Avoid dust, oil fog and corrosive gases
- Ambient Temperature: 0-50℃
- Humidity: 40%-90%RH
- Operating Temperature: 70℃ Max
- Storage Temperature: -20-65℃
- Dimensions: 1187x79.5x25.5mm
- Weight: 0.28kg
Contact Us
| Drive Specification | |
| Phase Number | 2 |
| Input Voltage(VDC) | 20-50 |
| Output Current(A) | 3.0-7.0 |
| Micro-step Resolutions | 200-51200 |
| Encoder Feedback | Yes |
| Control Mode | Pulse |
| Dimensions(mm) | 1187x79.5x25.5 |
| Weight(KG) | 0.28 |
