Leadshine 1 Axis Closed-loop Stepper CNC Kit 0.2Nm NEMA 17 Motor & Driver
- Part Number: 42CME02
- Lead Time: In Stock
- Unit Price: $88.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

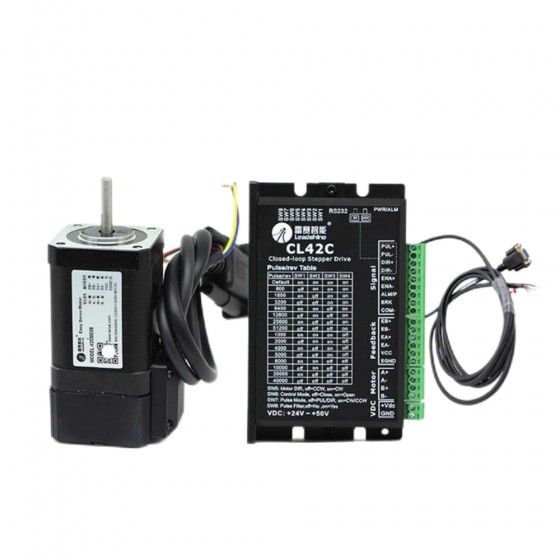

This Leadshine CNC kit includes:
1 x 42CME02: NEMA 17 Closed Loop Stepper Motor 0.2Nm with Encoder 1000CPR
1 x CL42C: Closed Loop Stepper Driver 0-3.0A 24-48VDC for NEMA 8, 11, 14, 17 Stepper Motor
1 x CABLE: 3M Extension Encoder Cable

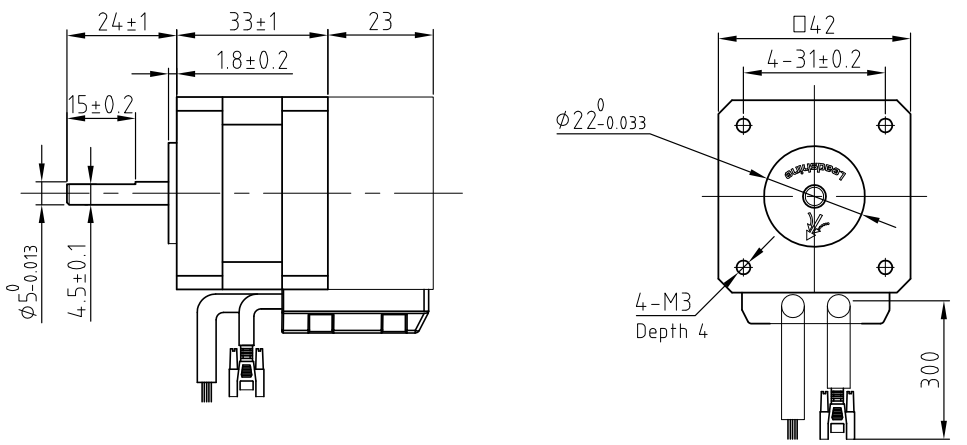

Motor Specification
- Part Number: 42CME02
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.2Nm
- Rated Current: 1.5A
- Driving Voltage: 24-72V
- Frame Size: 42x42mm
- Body Length: 56mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 300mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000CPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 270mm
- Supply Voltage: 5.0V
Driver Specification
- Output Peak Current: 0-3.0A
- InputVoltage: +24-48VDC(Typical 24VDC)
- Logic Signal Current: 7-16mA (Typical 10mA)
- Pulse Input Frequency: 0-200kHz
- Pulse Width: 2.5μS
- RS232 debugging interface available
- Low noise and vibration, smooth motion
- Protections for over voltage, over current and position following error
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.2 |
| Holding Torque(oz.in) | 28.4 |
| Rated Current(A) | 1.5 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 56 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Driving Voltage(VDC) | 12-24 |
| Encoder Specification | |
| Encoder Resolution(CPR) | 1000 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
