3 Phase NEMA 51 Stepper Motor 1.2deg 6.8A 35Nm 130x130x245mm 3 Wires
- Part Number: 130HS245-6803S
- Lead Time: One Week
- Unit Price: US $249.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This powerful electric engine is a 3 phase 1.2deg NEMA 51 stepper motor with size 130x130x245mm. It has 3 leads connection, each phase draws 6.8A with large holding torque 35Nm. It is widely used for automatic assembly, CNC machine, laser cutting, robots, etc.
Electrical Specification
- Manufacturer Part Number: 130HS245-6803S
- Step Angle: 1.2deg
- Holding Torque: 35Nm/4970oz.in
- Rated Current/phase: 6.8A
- Phase Resistance: 1.09ohms
- Inductance: 24mH
- Driving Voltage: 110-220VAC

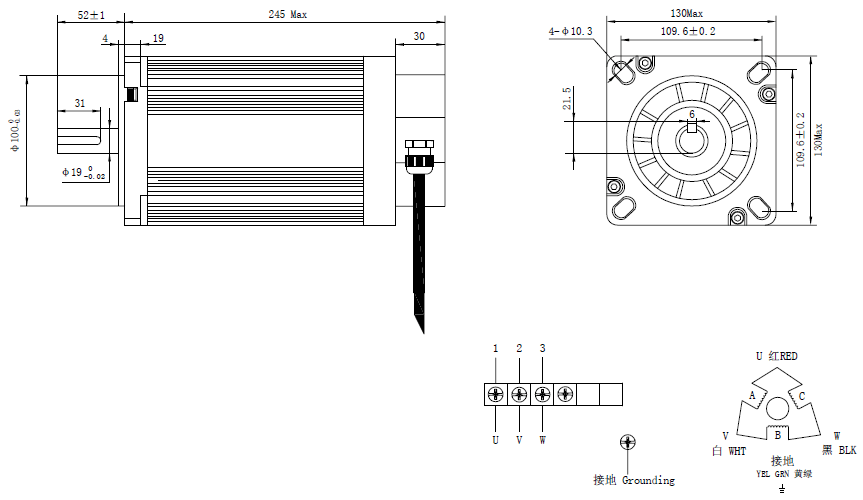

Physical Specification
- Frame Size: 130x130mm
- Body Length: 245mm
- Shaft Diameter: Φ19mm
- Shaft Length: 52mm
- keyway Shaft Length: 31mm
- Number of Leads: 3
- Lead Length: 1000mm
- Weight: 19kg
Connection
- Red: U, White: V, Black: W
Contact Us
| Product Details | |
| Model Number | 130HS245-6803S |
| Product Type | Hybrid Stepper |
| Lead Time | One Week |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.2 |
| Holding Torque(Nm) | 35 |
| Holding Torque(oz.in) | 4970 |
| Rated Current(A) | 6.8 |
| Driving Voltage(VAC) | 110-220 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 120x120 |
| Body Length(mm) | 245 |
| Output Shaft Type | keyway |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 52 |
| No. of Leads | 3 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 19 |
