NEMA 23 Stepper Motor Bipolar 1.8deg 4.2A 2.0Nm/284oz.in 57x76mm Φ8mm Shaft 2000mm Cable
- Part Number: 57HS76-4204S2
- Lead Time: In Stock
- Unit Price: US $22.50
- Sales: 3
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

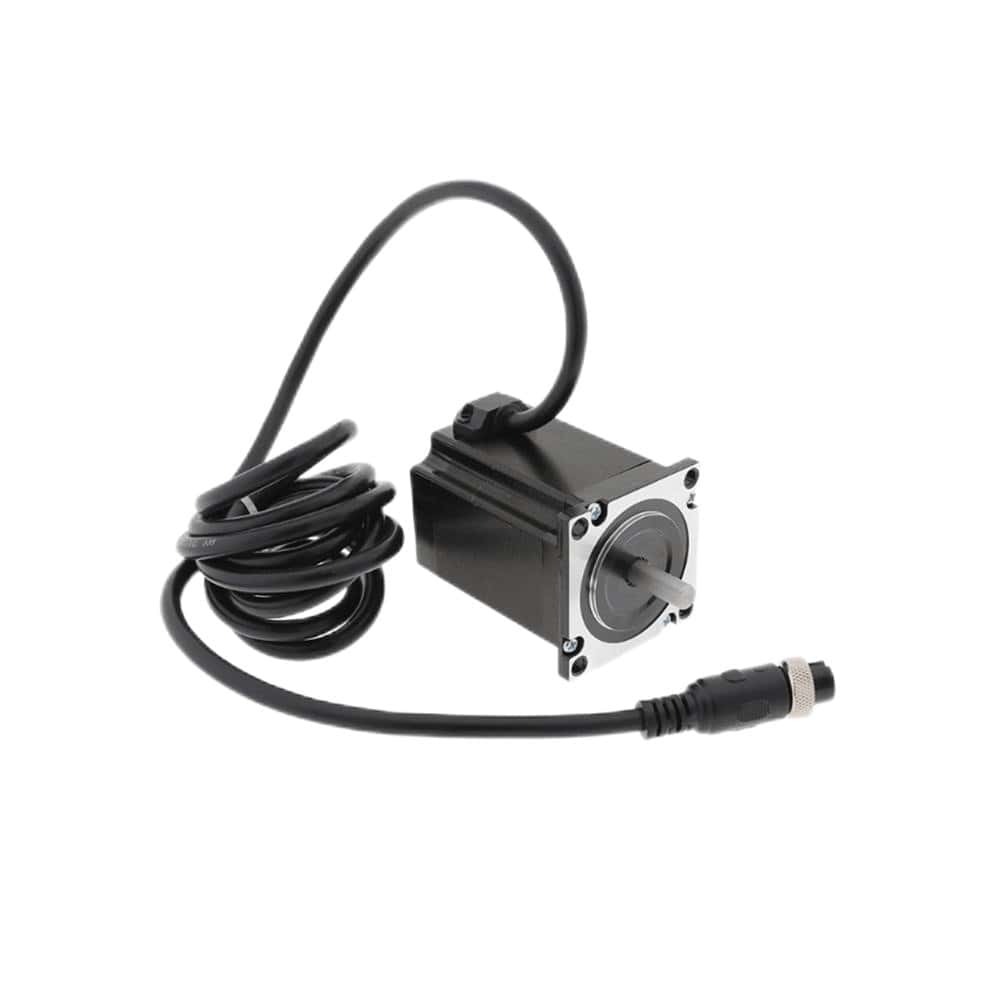

This is NEMA 23 stepper motor with step angle 1.8deg and size 57x57x76mm. It has 4 wires, each phase draws larger current 4.2A, with holding torque 2.0Nm/284oz.in. Please note the shaft diameter is 8mm and super long cable 2000mm with connector is available.
Electrical Specification
- Manufacturer Part Number: 57HS76-4204S2
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 2.0Nm/284oz.in
- Rated Current/phase: 4.2A
- Phase Resistance: 0.6ohms
- Inductance: 2.2mH
- Driving Voltage: 24-72V

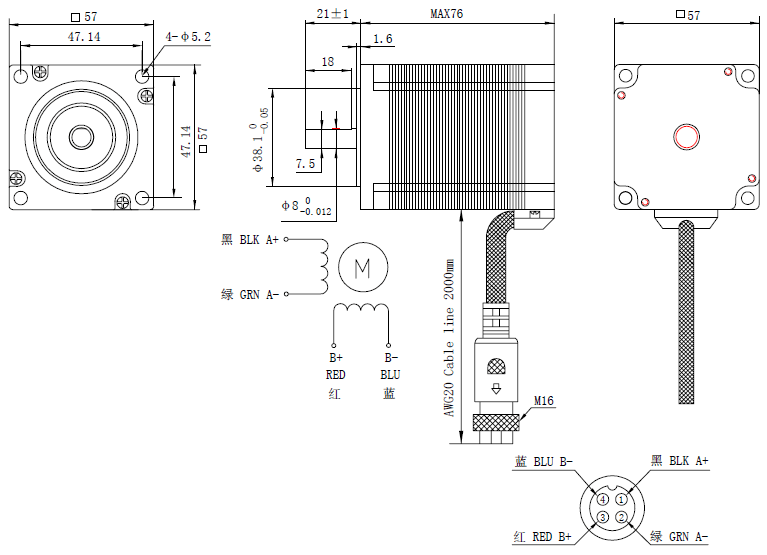

Physical Specification
- Frame Size: 57x57mm
- Body Length: 76mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 18mm
- Number of Leads: 4
- Lead Length: 2000mm
- Weight: 1.1kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 57HS76-4204S2 |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 2.0 |
| Holding Torque(oz.in) | 284 |
| Rated Current(A) | 4.2 |
| Driving Voltage(VDC) | 24-72 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 76 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| No. of Leads | 4 |
| Lead Length(mm) | 2000 |
| Weight(KG) | 1.1 |
