NEMA 17 Stepper Motor Bipolar 1.8deg 1.7A 0.6Nm/85.2oz.in 42x60mm Φ8mm Shaft
- Part Number: 42HS60-1704D8
- Lead Time: In Stock
- Unit Price: US $15.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 17 stepper motor has 4 wires, each phase drawing current 1.7A and holding torque 0.6Nm/85.2oz.in). The output shaft diameter is 8mm.
Electrical Specification
- Manufacturer Part Number: 42HS60-1704D8
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.6Nm/85.2oz.in
- Rated Current/phase: 1.7A
- Phase Resistance: 1.9ohms
- Inductance: 5.3mH
- Driving Voltage: 12-24V

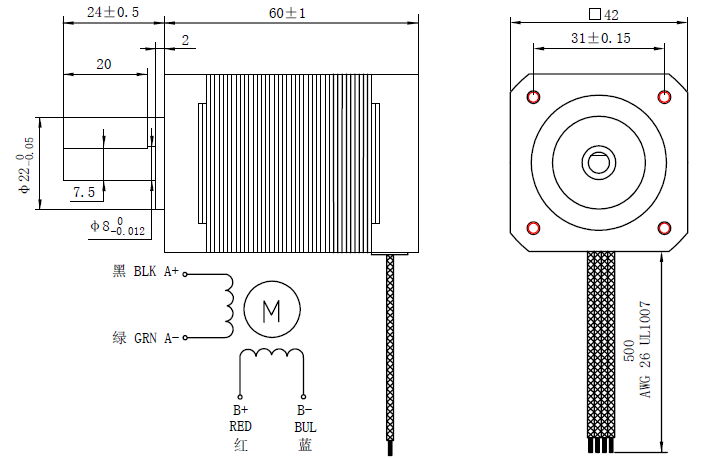

Physical Specification
- Frame Size: 42x42mm
- Body Length: 60mm
- Shaft Diameter: Φ8mm
- Shaft Length: 24mm
- D-cut Length: 20mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.5kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 42HS60-1704D8 |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.6 |
| Holding Torque(oz.in) | 85.2 |
| Rated Current(A) | 1.7 |
| Driving Voltage(VDC) | 12-24 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 60 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 24 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.5 |
