NEMA 14 Round Stepper Motor High Temperature 1.8deg 1.0A 0.12Nm/17.04oz.in Φ36.5x20mm 4 Wires
- Part Number: 36HR20-1004H
- Lead Time: In Stock
- Unit Price: US $30.00
- Sales: 13
- *Ship from China
This NEMA 14 round high-temperature stepper motor (36HR20-1004H) delivers 0.12 N·m (17.04 oz·in) of holding torque in a compact Φ36.5 × 20 mm frame, featuring a 1.8° step angle, 1.0 A rated current per phase, 4-wire bipolar wiring, a Φ2.5 mm shaft, and 12–24 VDC operation. Its defining feature is Class H insulation, enabling reliable performance in elevated-temperature environments where standard motors would degrade, complemented by an integrated 10-tooth SUS304 gear (module 0.5) for direct pinion engagement and a lightweight 0.11 kg build. This combination of thermal tolerance and compact pancake profile makes it well suited to heated-chamber 3D printers, high-temperature oven and furnace equipment, industrial drying and heat treatment systems, and laboratory or medical devices requiring precise positioning under high-heat conditions.
Electrical Specification
- Manufacturer Part Number: 36HR20-1004H
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.12Nm/17.04oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 2.1ohms
- Inductance: 1.6mH
- Driving Voltage: 12-24VDC
- Insulation Class: H
Physical Specification
- Frame Size: Φ36.5mm
- Body Length: 20mm
- Shaft Diameter: Φ2.5mm
- Shaft Length: 6mm
- Gear Module: 0.5
- Gear Teeth: 10
- Gear Material: SUS304
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 0.11kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-

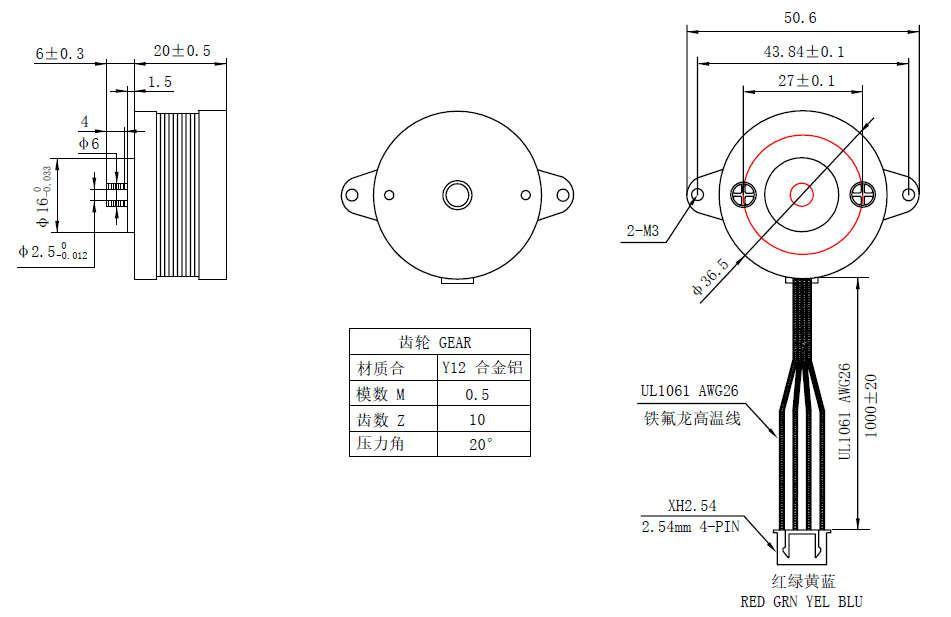

Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 36HR20-1004H |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(N·m) | 0.12 |
| Holding Torque(oz.in) | 17.04 |
| Rated Current(A) | 1.0 |
| Driving Voltage(VDC) | 12-24 |
| Insulation Class | F |
| Stepper Physical Specification | |
| Protection Class | IP20 |
| Frame Size(mm) | Φ36.5 |
| Body Length(mm) | 20 |
| Output Shaft Type | Round |
| Shaft Diameter(mm) | 2.5 |
| Shaft Length(mm) | 6 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 0.11 |
