NEMA 14 Round Stepper Motor Bipolar 1.8deg 1.0A 0.12Nm/17.04oz.in Φ36.5x20mm 4 Wires
- Part Number: 36HS20-1004S
- Lead Time: In Stock
- Unit Price: US $16.50
- Sales: 42
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is round NEMA 14 stepper motor with step angle 1.8deg and body length 20mm. It has 4 wires, each phase draws 1.0A and holding torque 0.12Nm/17.04oz.in.
Electrical Specification
- Manufacturer Part Number: 35HS20-1004S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.12Nm(17.04oz.in)
- Rated Current/phase: 1.0A
- Phase Resistance: 10.0ohms
- Inductance: 6.0mH
- Driving Voltage: 12-24V

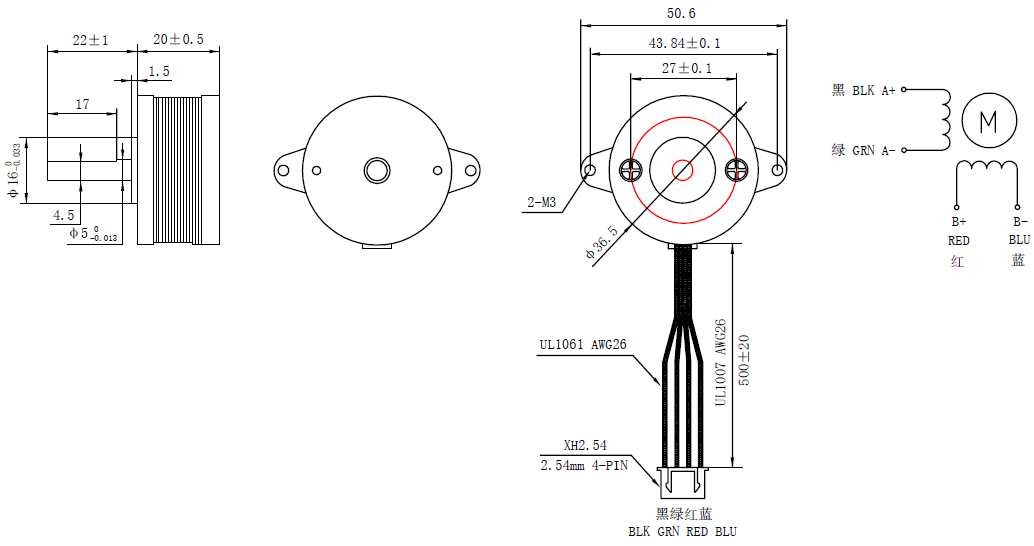

Physical Specification
- Frame Size: Φ36.5mm
- Body Length: 20mm
- Shaft Diameter: Φ5mm
- Shaft Length: 22mm
- D-cut Length: 17mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.1kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 36HS20-1004S |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.12 |
| Holding Torque(oz.in) | 17.04 |
| Rated Current(A) | 1.0 |
| Driving Voltage(VDC) | 12-24 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | Φ36.5 |
| Body Length(mm) | 20 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 22 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.10 |
