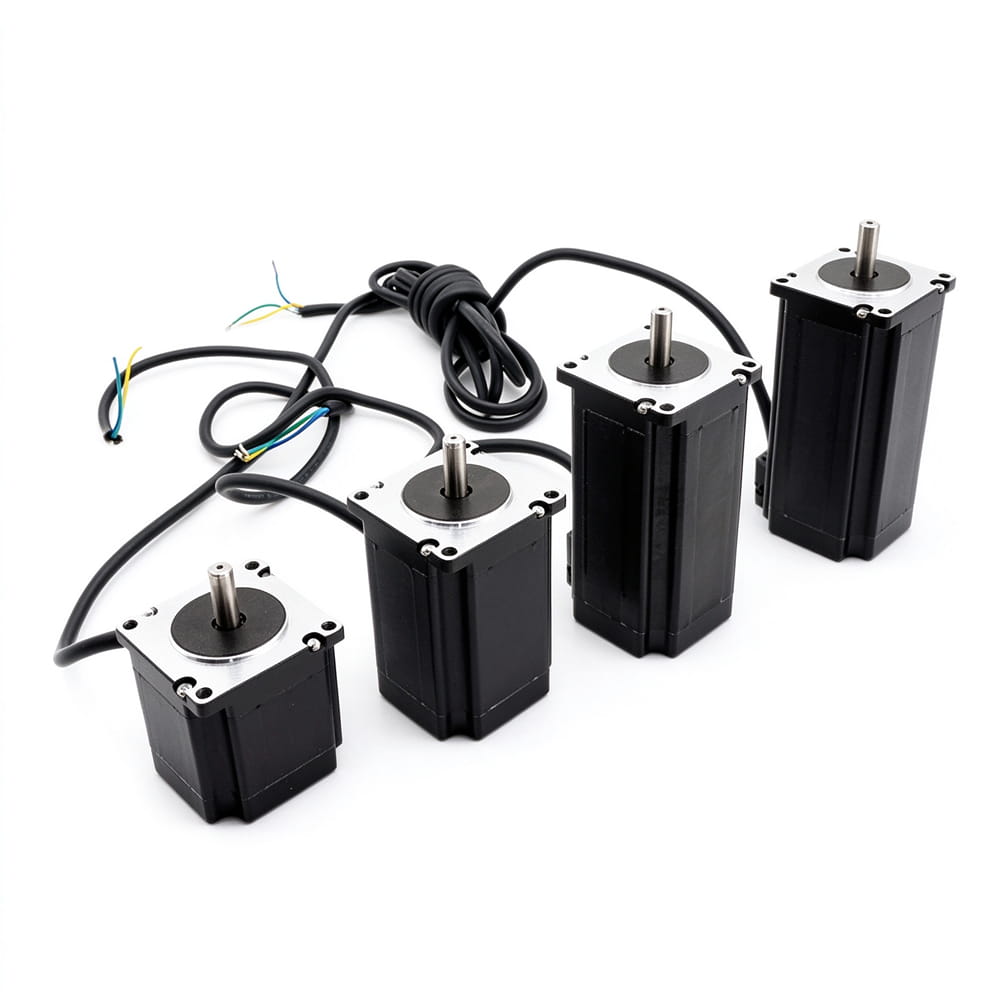

3 Phase 57mm NEMA 23 Stepper Motor 1.2 deg 1.2 N-m/1.8 N-m/2.2 N-m/2.8N-m 3 Wires
- Part Number: 57HCY112
- Lead Time: In Stock
- Unit Price: US $56.00
- *Ship from China
Holding Torque
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
Compared to the 2 phase stepper motor, the 3 phase stepper motor has a smaller step angle 1.2 degree (300 steps/revolution), which creates a more balanced rotating magnetic field. It has key advantages of smoother motion, higher resolution, better microstepping, less resonance and overshoot, improved high-speed, performance, better torque utilization, lower noise. Frankhumotor's 57mm (NEMA 23) 3-phase stepper motors are preferred where smoothness, precision, low vibration, and quiet operation matter—such as CNC, robotics, medical, and semiconductor equipment. The matched drive is 3DM580S.
General Specifications
- Temperature Rise ……………… 80K Max
- Ambient Temperature ……………… -20°C to +50°C
- Insulation Class ……………… Class B
- Insulation Resistance ……………… 500VDC 100MΩ Min
- Dielectric Strength ……………… 500VAC 50Hz 1min, Leakage Current ≤ 5mA
| Model Number | Phase Number |
Step Angle (deg.) |
Holding Torque (N-m) |
Rated Current (A) |
Working Voltage (DC) |
Body Length (mm) |
Weight (kg) |
| 57HCY56 | 3 | 1.2 | 1.2 | 5.6 | 24-48 | 56 | 0.75 |
| 57HCY76 | 3 | 1.2 | 1.8 | 5.8 | 24-48 | 76 | 1.1 |
| 57HCY102 | 3 | 1.2 | 2.2 | 5.8 | 24-48 | 102 | 1.6 |
| 57HCY5112 | 3 | 1.2 | 2.8 | 5.8 | 24-48 | 112 | 1.8 |
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 57HCY |
| Product Type | IP54 |
| Lead Time | in stock |
| Insulation Class | B |
| Protection Class | IP54 |
