3 Phase NEMA 34 Ultrathin Stepper Motor 1.2deg 2.0A 1.5Nm 86x30mm 3 Wires
- Part Number: 86HE3008-30B
- Lead Time: In Stock
- Unit Price: US $80.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2

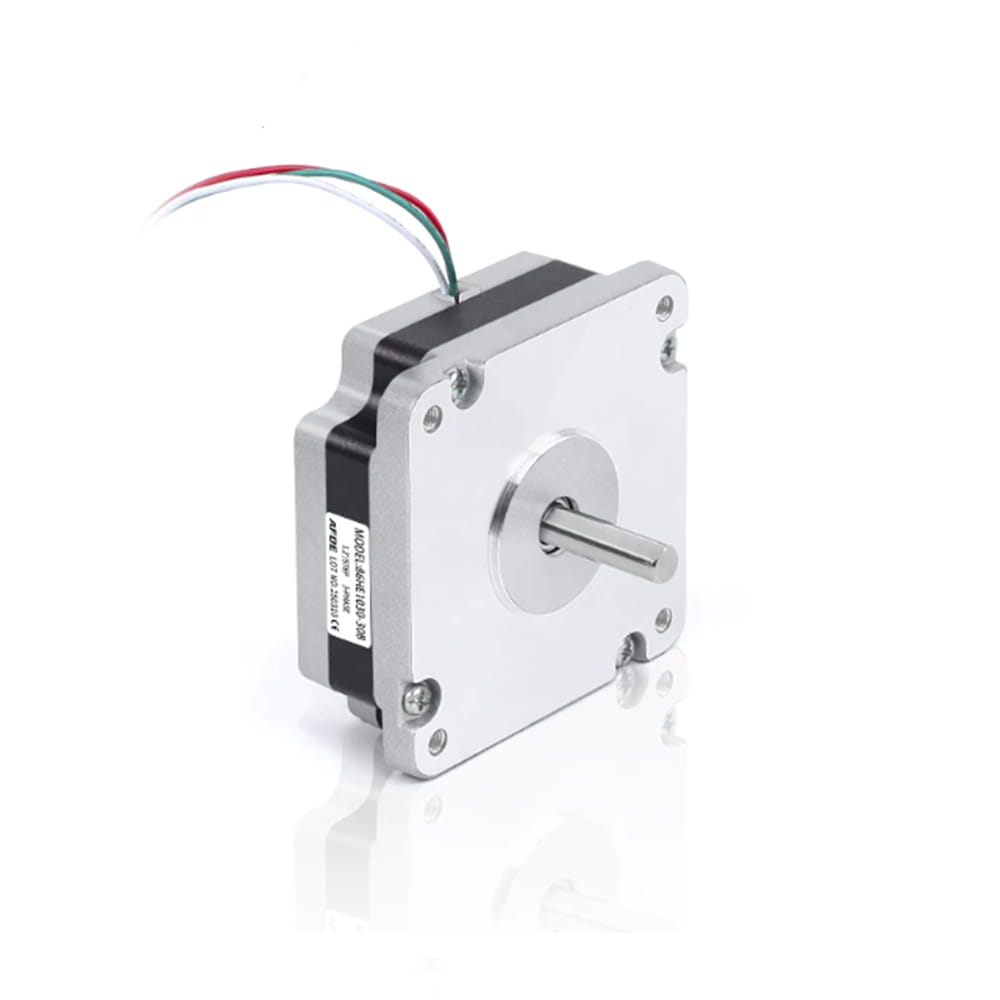

This electric motor is a 3 phase size 86mm NEMA 34 stepper motor with an ultrathin 30mm body length. It has 1.2 degree step angle (300 steps per revolution), 3 wires connection, each phase drawing 2.0A with holding torque 1.5Nm. The 3 phase stepper drive 3DM580S can be used for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 86HE3008-30B
- Step Angle: 1.2deg
- Holding Torque: 1.5Nm
- Rated Current/phase: 2.0A
- Phase Resistance: 2.5ohms
- Inductance: 9.5mH
- Driving Voltage: 24-48V

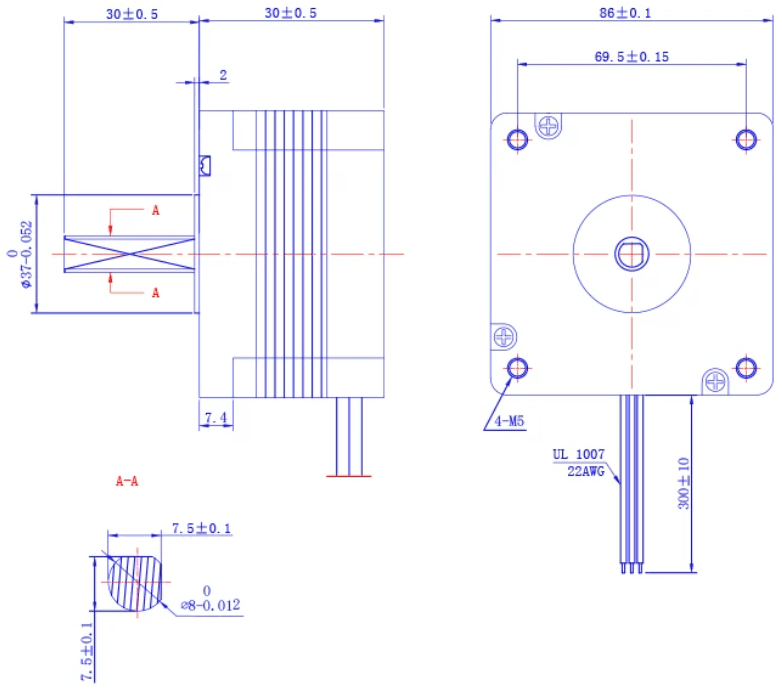

Physical Specification
- Frame Size: 86x86mm
- Body Length: 30mm
- Shaft Diameter: Φ8mm
- Shaft Length: 30mm
- D-cut Length: 30mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.8kg
Connection
- White: U, Green: V, Red: W
Contact Us
| Product Details | |
| Model Number | 86HE3008-30B |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.2 |
| Holding Torque(Nm) | 1.5 |
| Rated Current(A) | 2.0 |
| Driving Voltage(VDC) | 24-48 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 30 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 30 |
| No. of Leads | 3 |
| Lead Length(mm) | 300 |
| Weight(KG) | 0.8 |
