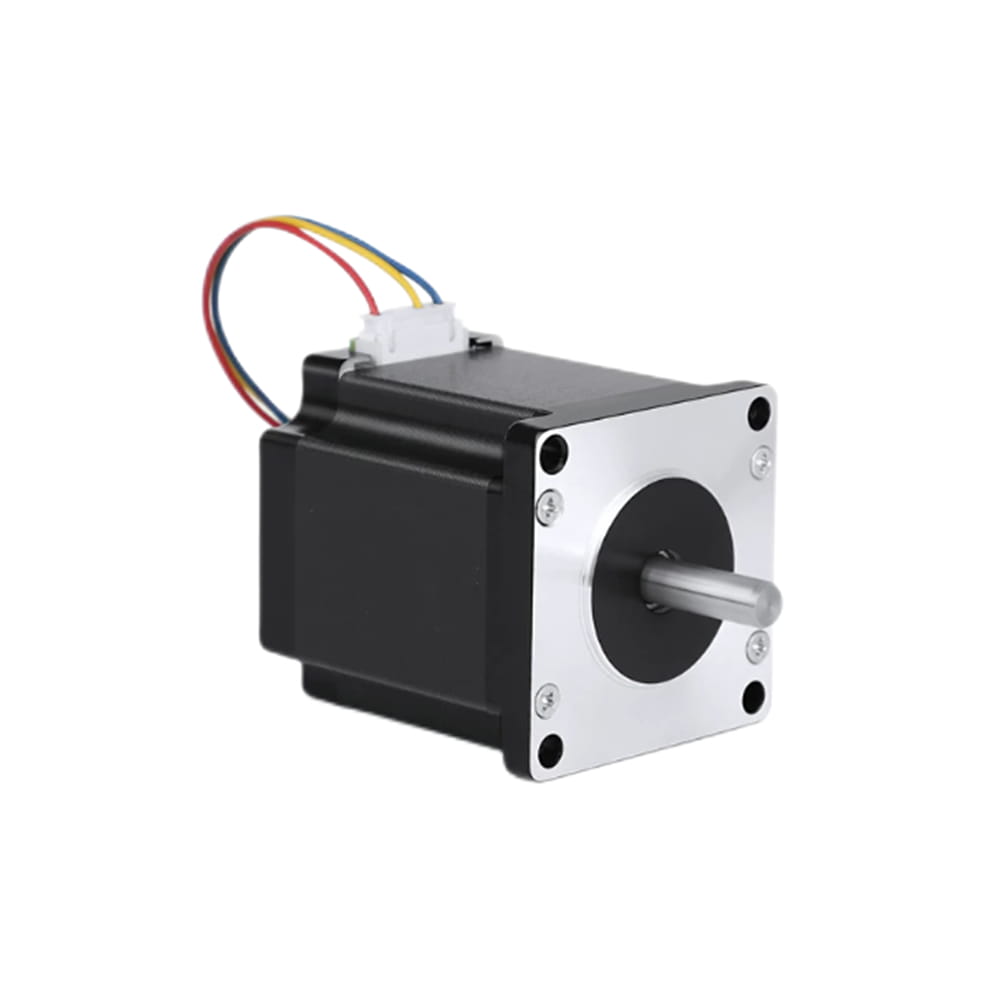

3 Phase NEMA 24 Stepper Motor 1.2deg 1.5A 0.9Nm 60x76mm 3 Wires
- Part Number: 60HE7608-30B
- Lead Time: In Stock
- Unit Price: US $49.90
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This electric motor is a 3 phase size 60mm (NEMA 24) stepper motor with a 76mm body length. It has 1.2 degree step angle (300 steps per revolution), 3 wires connection, each phase drawing 1.5A with holding torque 0.9Nm. The 3 phase stepper drive 3DM580S can be used for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 60HE7608-30B
- Step Angle: 1.2deg
- Holding Torque: 0.9Nm
- Rated Current/phase: 1.5A
- Phase Resistance: 2.6ohms
- Inductance: 5.6mH
- Driving Voltage: 24-48V

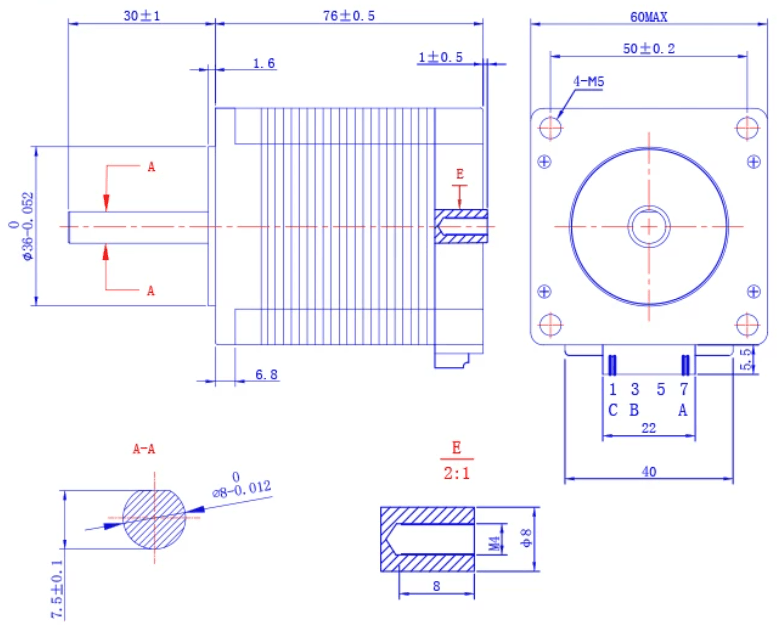

Physical Specification
- Frame Size: 60x60mm
- Body Length: 76mm
- Shaft Diameter: Φ8mm
- Shaft Length: 30mm
- D-cut Length: 30mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 1.2kg
Connection
- Red: U, Yellow: V, Green: W
Contact Us
| Product Details | |
| Model Number | 60HE7608-30B |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.2 |
| Holding Torque(Nm) | 0.9 |
| Rated Current(A) | 1.5 |
| Driving Voltage(VDC) | 24-48 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 60x60 |
| Body Length(mm) | 30 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 30 |
| No. of Leads | 3 |
| Lead Length(mm) | 300 |
| Weight(KG) | 1.2 |
