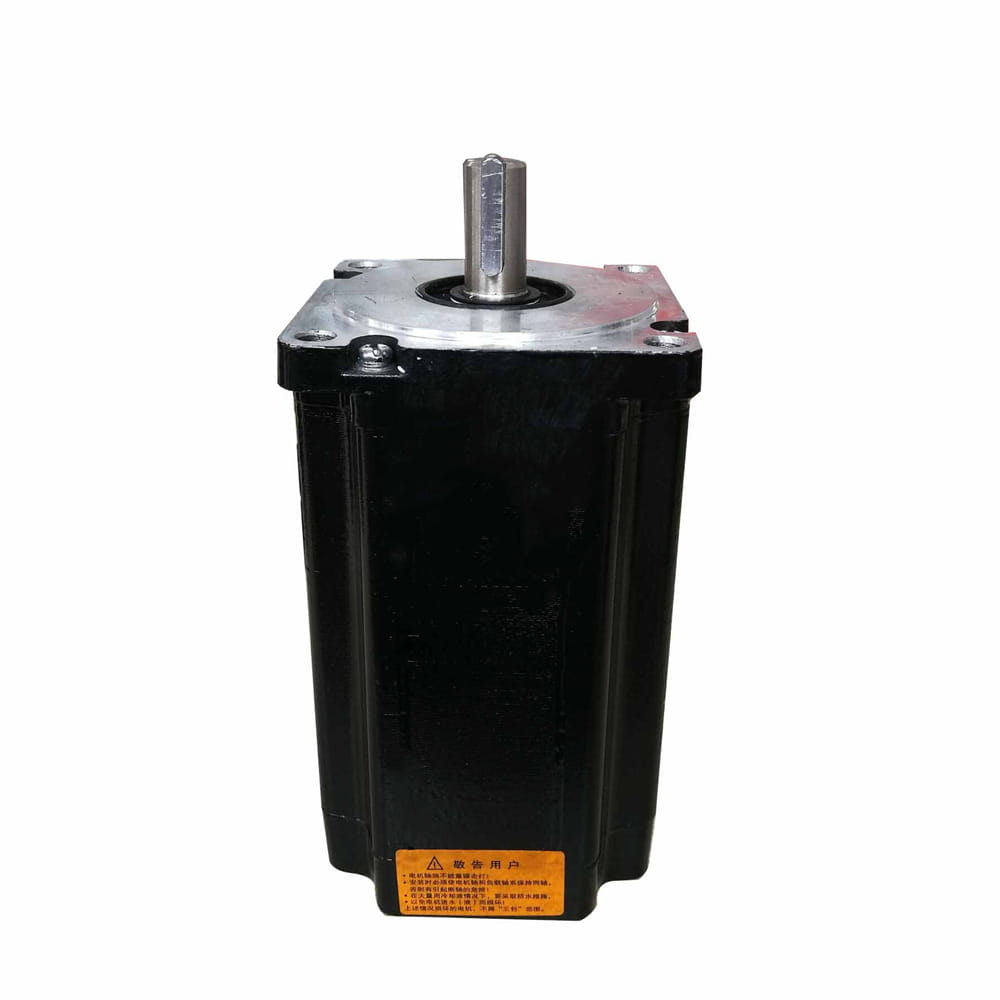

3 Phase 86mm NEMA 34 Stepper Motor 1.2 deg 4.5 N-m/6.0 N-m/8.0 N-m/12 N-m 3 Wires
- Part Number: 86HT
- Lead Time: In Stock
- Unit Price: US $80.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
Compared to the 2 phase stepper motor, the 3 phase stepper motor has a smaller step angle 1.2 degree (300 steps/revolution), which creates a more balanced rotating magnetic field. It has key advantages of smoother motion, higher resolution, better microstepping, less resonance and overshoot, improved high-speed, performance, better torque utilization, lower noise. Frankhumotor's 86mm (NEMA 34) 3-phase stepper motors are preferred where smoothness, precision, low vibration, and quiet operation matter—such as CNC, robotics, medical, and semiconductor equipment. The matched drive is 3DM580S.
General Specification
- Temperature Rise: 80K Max
- Ambient Temperature: -20°C to +50°C
- Insulation Class: Class B
- Insulation Resistance: 500VDC 100MΩ Min
- Dielectric Strength: 500VAC 50Hz 1min, Leakage Current ≤ 5mA
NEMA 34 (86mm) 3 Phase Stepper Motor
| Model Number | Holding Torque | Step Angle | Driving Voltage | Rated Current | Resistance | Inductance | Rotor Inertia | Weight | Body Length |
| N-m | ° | V | A | ohms | mH | kg·cm2 | kg | mm | |
| 86HT97-2103S | 4 | 1.2 | 24-110 | 2.1 | 7.4 | 1.4 | 2.55 | 3.0 | 97 |
| 86HT135-3203S | 6 | 1.2 | 24-110 | 2.3 | 12.8 | 1.88 | 3.96 | 4.4 | 135 |
| 86HT145-4003S | 8 | 1.2 | 24-110 | 4.0 | 13.2 | 1.98 | 4.0 | 5.0 | 145 |
| 86HT156-5003S | 12 | 1.2 | 24-110 | 5.0 | 14.5 | 2.05 | 4.5 | 5.5 | 156 |

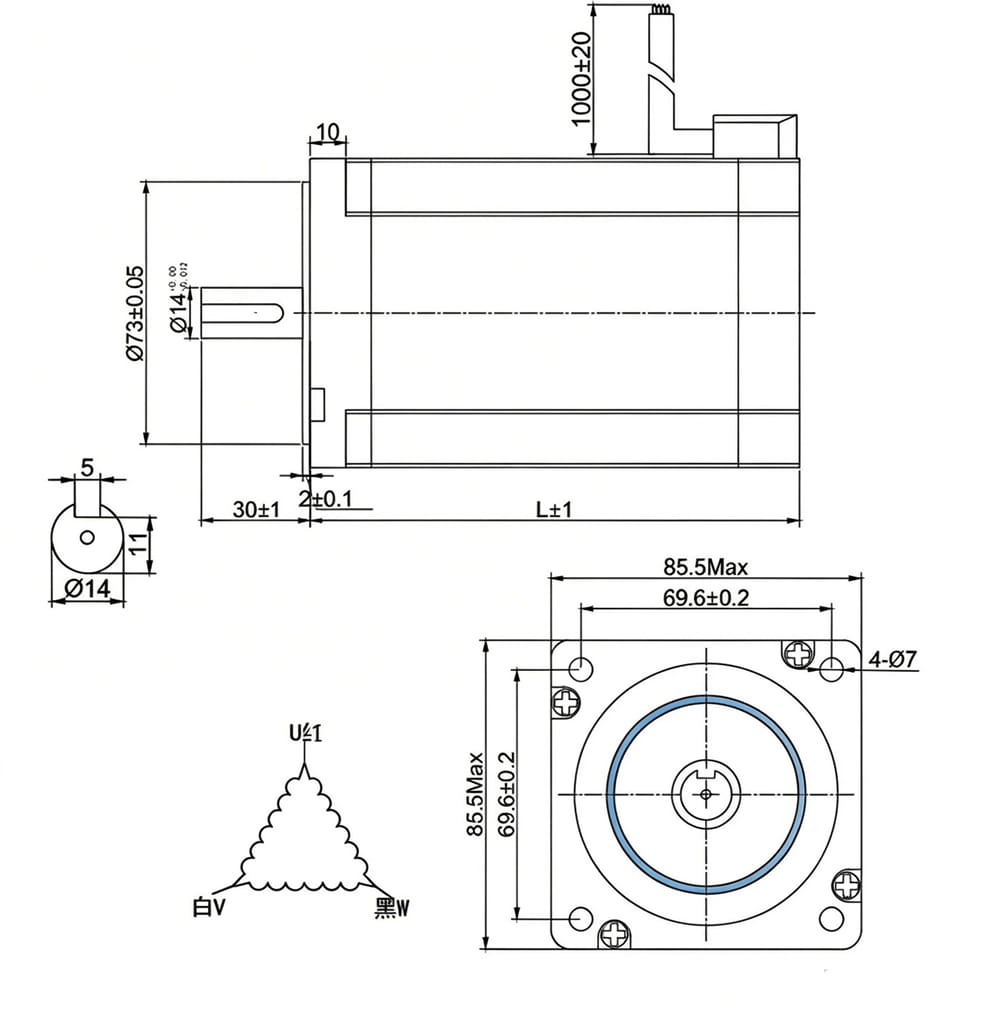

Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 86HT |
| Product Type | IP54 |
| Lead Time | in stock |
| Insulation Class | B |
| Protection Class | IP54 |
Connection
Red: U, White: V, Black: W
