NEMA 42 CNC Stepper Motor Dual Shaft Bipolar 8.0A 30Nm/4260oz.in 110x201mm with Rear Shaft
- Part Number: 110HS201-8004D
- Lead Time: In Stock
- Unit Price: US $202.00
- Sales: 18
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

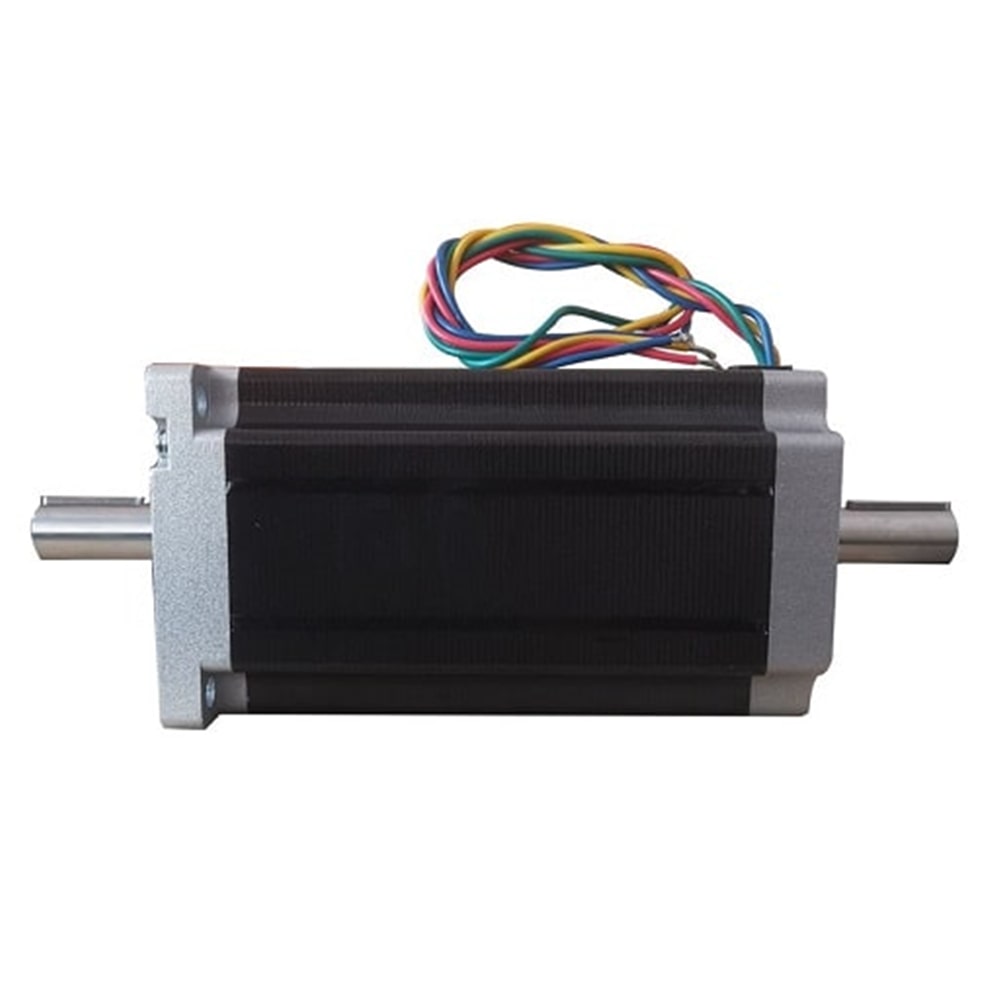

This is the biggest CNC nema 42 stepper motor DUAL SHAFT we have. It has size 110x110x201mm with 4 wires, each phase drawing current 8.0A with huge torque up to 30Nm/4260oz.in. A length of 55m rear shaft is available for mounting encoder, hand wheel or equals.
Electrical Specification
- Manufacturer Part Number: 110HS201-8004D
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 30Nm/4260oz.in
- Rated Current/phase: 8.0A
- Phase Resistance: 0.7ohms
- Inductance: 13.5mH
- Driving Voltage: 110-220VAC

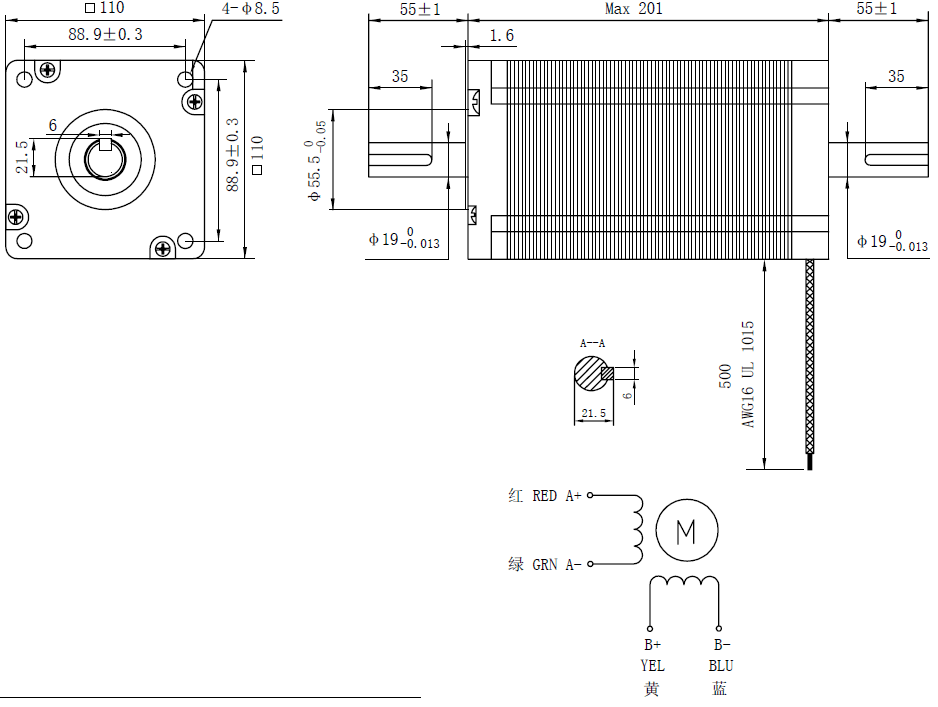

Physical Specification
- Frame Size: 110x110mm
- Body Length: 201mm
- Shaft Diameter: Φ19mm
- Front Shaft Length: 55mm
- keyway Shaft Length: 35mm
- Rear Shaft Length: 55mm
- keyway Shaft Length: 35mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 12.5kg
Connection
- Red: A+, Green: A-, Yellow: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 110HS201-8004D |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 30 |
| Holding Torque(oz.in) | 4260 |
| Rated Current(A) | 8.0 |
| Driving Voltage(VAC) | 110-220 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 110x110 |
| Body Length(mm) | 201 |
| Output Shaft Type | Keyway |
| Single Shaft/Dual Shaft | Dual Shaft |
| Front Shaft Diameter(mm) | 19 |
| Rear Shaft Diameter(mm) | 19 |
| Front Shaft Length(mm) | 55 |
| Rear Shaft Length(mm) | 55 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 12 |
