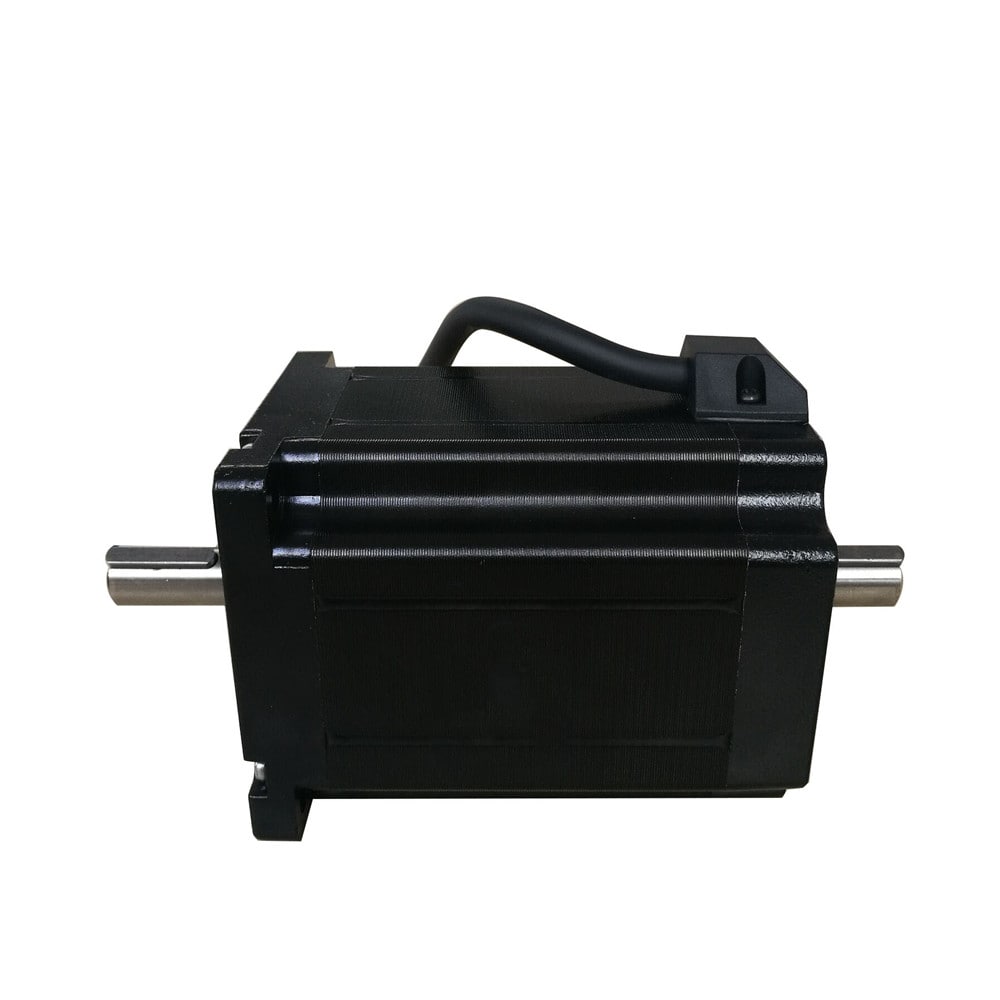

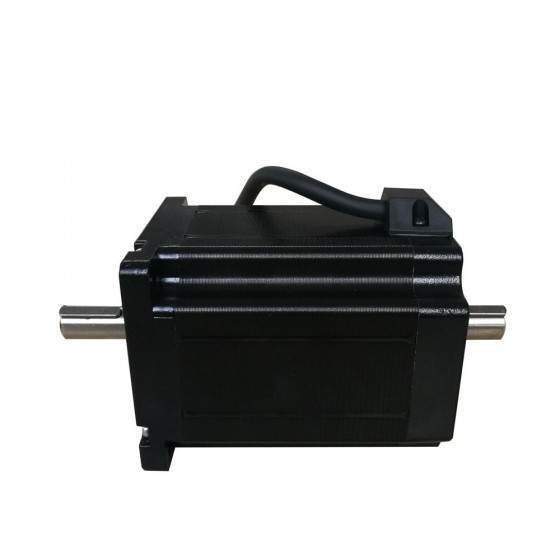

NEMA 34 CNC Stepper Motor Bipolar Dual Shaft 6.0A 12Nm/1704oz.in 86x151mm with Rear Shaft
- Part Number: 86HS151-6004D
- Lead Time: In Stock
- Unit Price: US $65.00
- Sales: 78
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 34 CNC stepper motor dual shaft has one very powerful holding torque 12Nm/1704oz.in with a length of 28mm rear shaft.
Electrical Specification
- Manufacturer Part Number: 86HS151-6004D
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 12Nm/1704oz.in
- Rated Current: 6.0A
- Phase Resistance: 0.75ohms
- Inductance: 9.0mH
- Driving Voltage: 36-72VDC

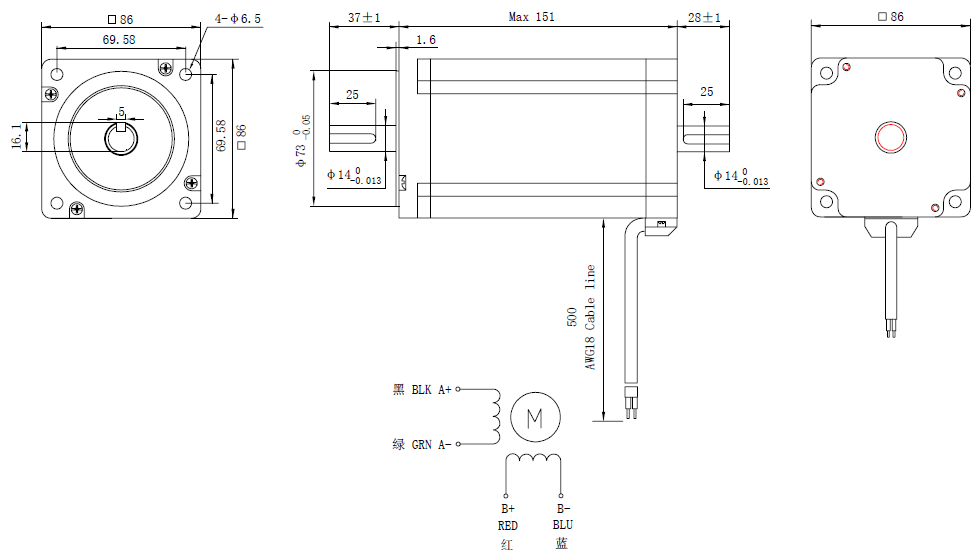

Physical Specification
- Frame Size: 86x86mm
- Body Length: 151mm
- Front Shaft Diameter: Φ14mm
- Front Shaft Length: 37mm
- Front Keyway Length: 25mm
- Rear Shaft Diameter: Φ14mm
- Rear Shaft Length: 28mm
- Rear Keyway Length: 25mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 5.5kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 86HS151-6004D |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 12 |
| Holding Torque(oz.in) | 1704 |
| Rated Current(A) | 6.0 |
| Driving Voltage(VDC) | 24-110 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 151 |
| Front Shaft Diameter(mm) | 14 |
| Rear Shaft Diameter(mm) | 14 |
| Front Shaft Length(mm) | 37 |
| Rear Shaft Length(mm) | 28 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 5.5 |
