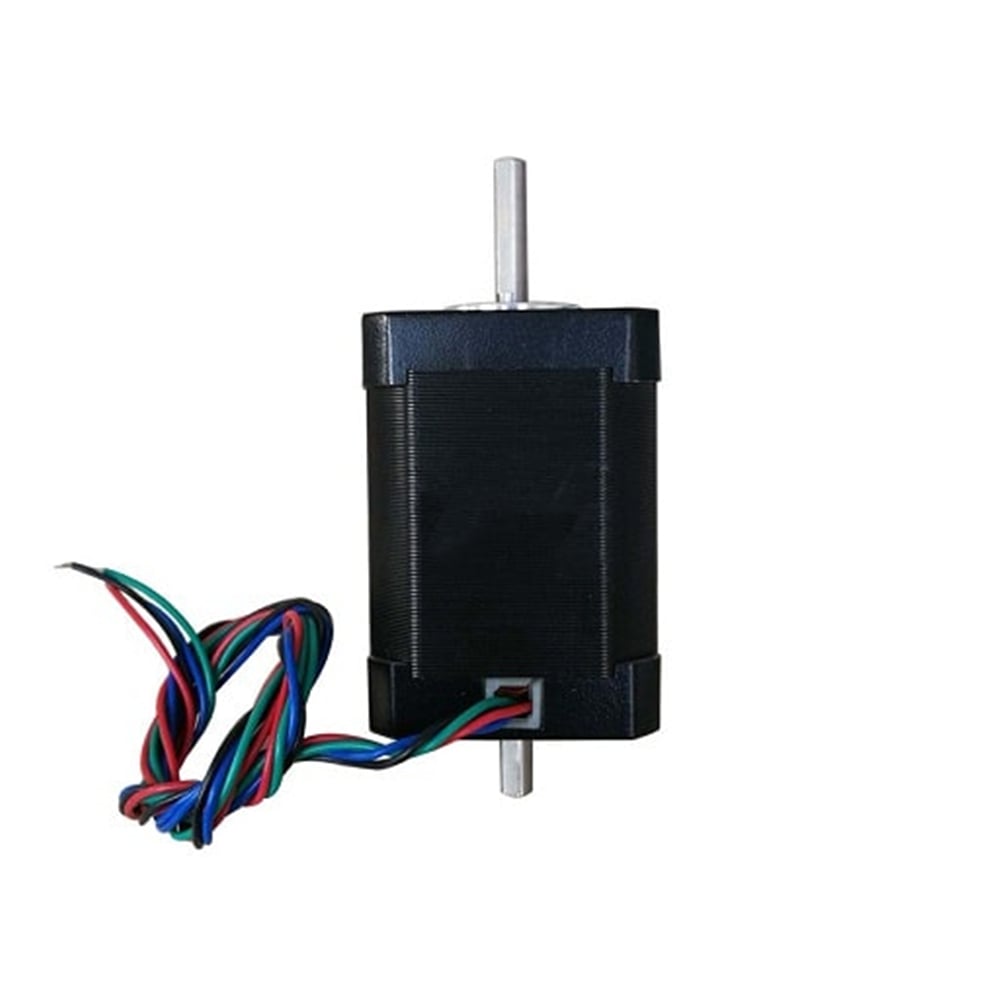

NEMA 17 Stepper Motor Dual Shaft Bipolar 1.8deg 2.1A 0.65Nm/92.3oz.in 2.10A 42x60mm with Rear Shaft
- Part Number: 42HS60-2104D
- Lead Time: In Stock
- Unit Price: US $15.00
- Sales: 27
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is bipolar NEMA 17 stepper motor dual shaft with step angle 1.8deg and szie 42x42x60mm. It has 4 wires, each phase drawing current 2.1A with holding torque 0.65Nm/92.3oz.in. A length of 15mm rear shaft is available for the brake or encoder mounting.
Electrical Specification
- Manufacturer Part Number: 42HS60-2104D
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.65Nm/92.3oz.in
- Rated Current/phase: 2.1A
- Phase Resistance: 1.6ohms
- Inductance: 3.0mH
- Driving Voltage: 12-24V

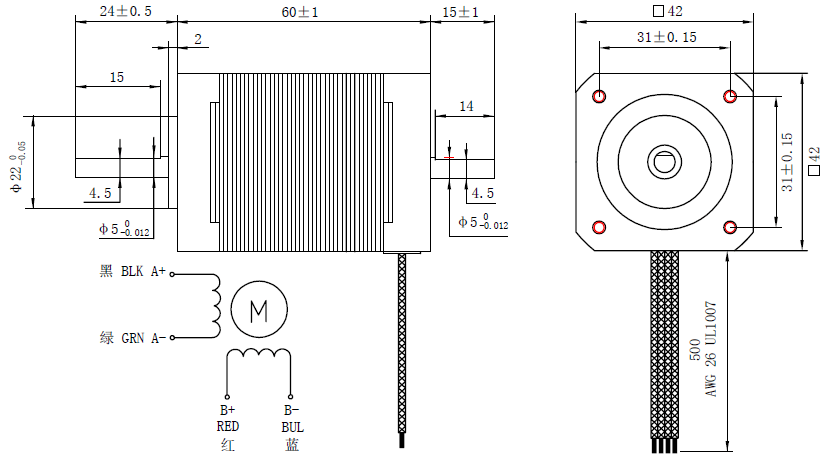

Physical Specification
- Frame Size: 42x42mm
- Body Length: 60mm
- Shaft Diameter: Φ5mm
- Front Shaft Length: 24mm
- D-cut Length: 20mm
- Rear Shaft Length: 15mm
- D-cut Length: 14mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.5kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 42HS60-2104D |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.65 |
| Holding Torque(oz.in) | 92.3 |
| Rated Current(A) | 2.1 |
| Driving Voltage(VDC) | 12-24 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 60 |
| Front Shaft Diameter(mm) | 5 |
| Rear Shaft Diameter(mm) | 5 |
| Front Shaft Length(mm) | 24 |
| Rear Shaft Length(mm) | 15 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.5 |
