NEMA 17 Stepping Motor 2.0A L=49.5mm 3arcmin Precision Cycloidal Drive Gearbox Reduction Ratio 60:1
- Part Number: TS4260Y5N
- Lead Time: In Stock
- Unit Price: US $115.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

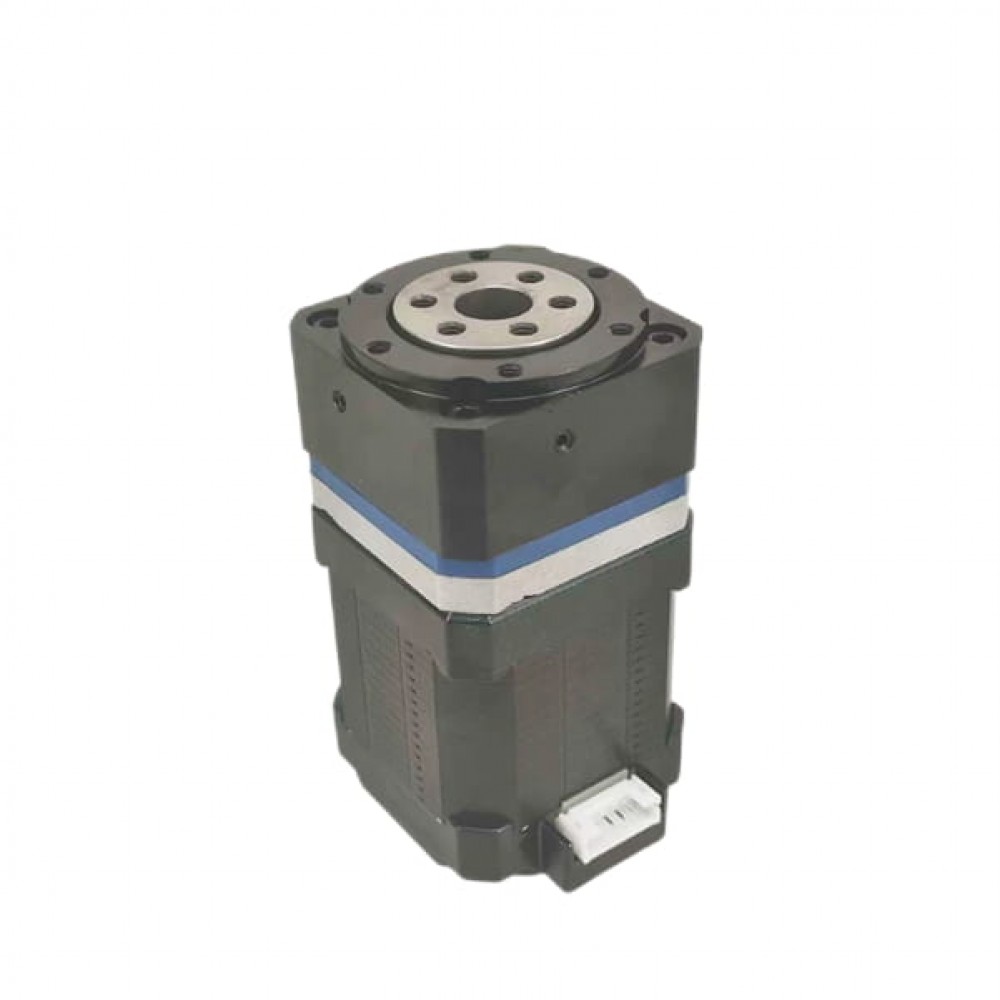

This compact NEMA 17 (size 42mm) precise geared stepper motor has integrated with a low backlash 3arcmin cycloidal drive planetary gearbox of reduction ratio 60:1, which can generate a torque otuput upto 30Nm and a low speed range 0-20RPM. It's an ideal solution to the applications that require limited space but low speed or high torque with precision control. The ditigal geared stepper drive M332C can be used for controlling this motor. The Cycloidal Drive Planetary Reducer (Gearbox) has the big advantages of ultrathin body, low backlash, heavy load, low noise, long lifespan, etc.

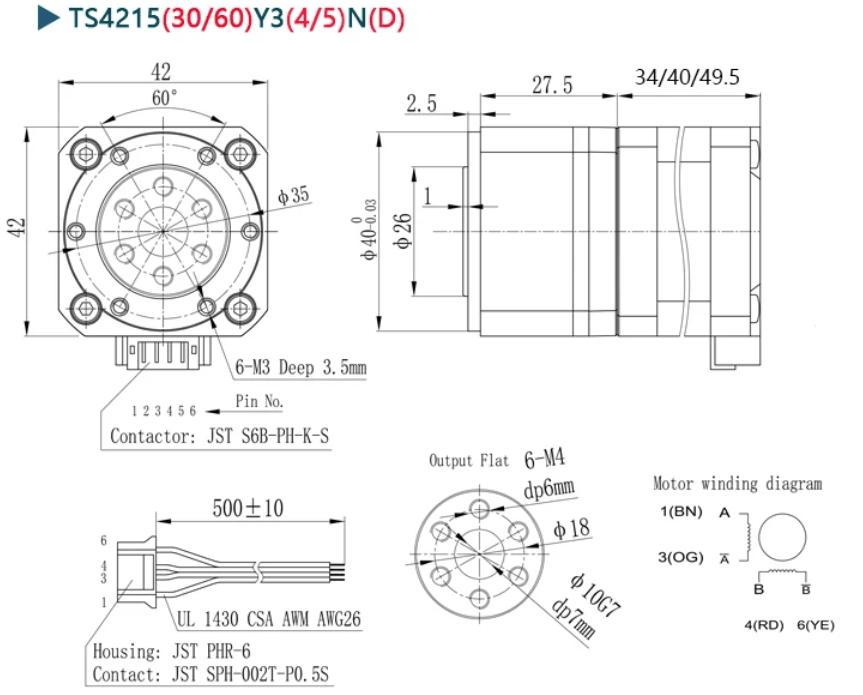

TS4260Y5N Specification
- Manufacturer Part Number: TS4260Y5N
- Step Angle: 0.03deg
- Bi/Unipolar: Bipolar
- Holding Torque: 31Nm
- Rated Current/phase: 2.0A
- Driving Voltage: 12-24V
- Frame Size: 42x42mm
- Body Length: 76.5mm
- Number of Leads: 4
- Lead Length: 500mm
- Gearbox Type: Cycloidal
- Gear Ratio: 60:1
- Efficiency: 96%
- Backlash at No-load: <=3arcmin
- Output Type: Bearing output
- Weight: 0.52KG
Connection
- Brown: A+, Orange: A-, Red: B+, Yellow: B-
Contact Us
| Product Details | |
| Model Number | TS4260Y5N |
| Product Type | Geared Stepper |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 0.03 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 31 |
| Rated Current(A) | 2.0 |
| Driving Voltage(VDC) | 12-24 |
| Body Length(mm) | 76.5 |
| Gearbox Specification | |
| Gearbox Type | Cycloidal Reducer |
| Gear Ratio | 60:1 |
| Output Shaft Type | Bearing Output |
