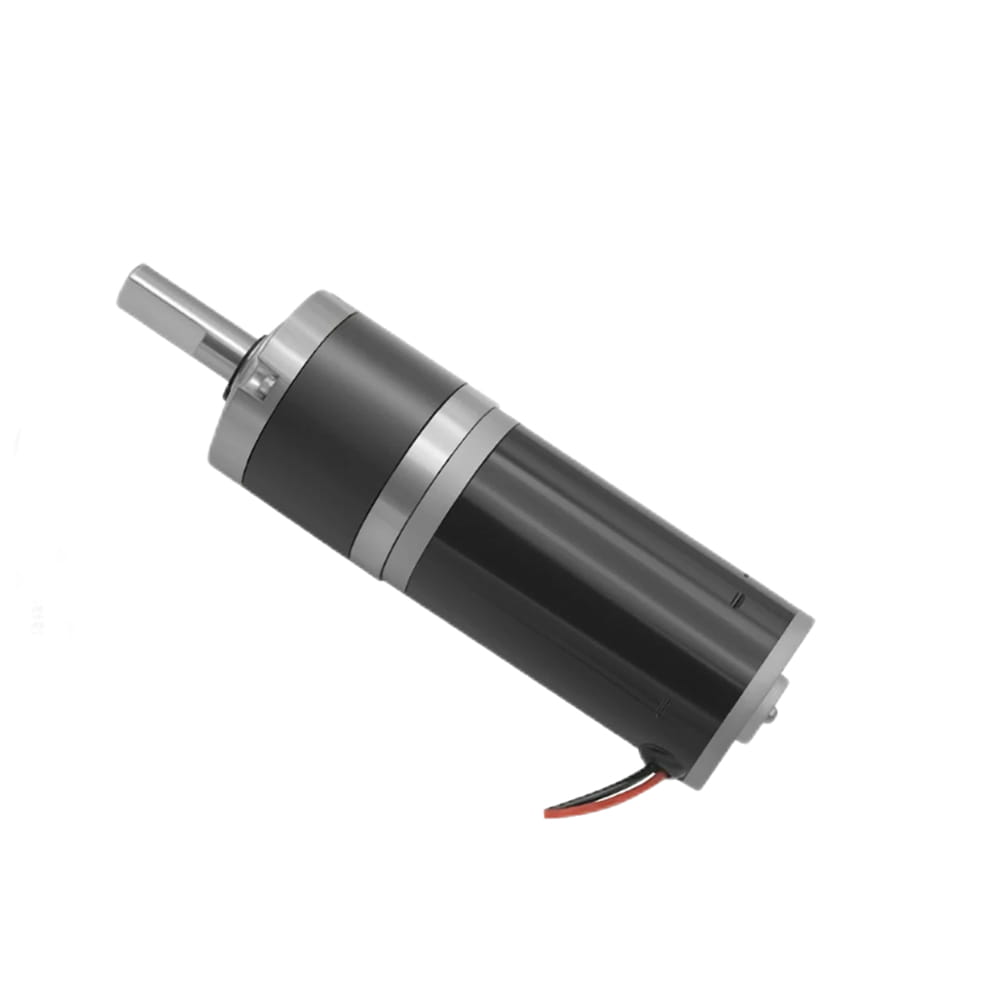

12V/24V Φ32mm 32BD57-PG Brushed Planetary Gearbox Motor Maximum 10 N-m
- Brand: Frankhumotor
- Part Number: 32BD57-PG
- Lead Time: In Stock
- Unit Price: US $38.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
The Model 32BD57-PG is a compact 12/24 VDC planetary gear motor delivering high torque (up to 10 N·m) and low-noise operation. It features variable speed control (10 – 2,200 RPM) and reversible (CW/CCW) operation, making it highly reliable for precision applications such as medical equipment, AGVs, robotic arms, and printing machinery, and more. Please specify the model number in the order note.
12 VDC 2.4A 20W Φ32mm Brushed Planetary Geared Motor
| Model Number | Gear Ratio | Rated Voltage | No-load Speed | No-load Current | Rated Speed | Rated Torque | Rated Current | Weight | Total Length |
| (V DC) | RPM | mA | RPM | N-m | A | g | (L+57)(mm) | ||
| 32BD57-12-PG4 | 3.7:1 | 12 | 2,162 | 250 | 1,650 | 0.08 | 2.4 | 260 | 82.6 |
| 32BD57-12-PG5 | 5.2:1 | 1,538 | 250 | 1,250 | 0.12 | 2.4 | 260 | 82.6 | |
| 32BD57-12-PG19 | 19:1 | 421 | 250 | 340 | 0.40 | 2.4 | 300 | 88.5 | |
| 32BD57-12-PG27 | 27:1 | 296 | 250 | 245 | 0.60 | 2.4 | 300 | 88.5 | |
| 32BD57-12-PG50 | 50:1 | 160 | 250 | 126 | 0.90 | 2.4 | 310 | 88.5 | |
| 32BD57-12-PG71 | 71:1 | 112 | 250 | 88 | 1.20 | 2.4 | 310 | 94.8 | |
| 32BD57-12-PG100 | 100:1 | 80 | 250 | 63 | 1.60 | 2.4 | 310 | 94.8 | |
| 32BD57-12-PG139 | 139:1 | 57 | 250 | 45 | 2.50 | 2.4 | 310 | 94.8 | |
| 32BD57-12-PG189 | 189:1 | 42 | 250 | 33 | 2.80 | 2.4 | 320 | 100.9 | |
| 32BD57-12-PG262 | 262:1 | 30 | 250 | 25 | 3.50 | 2.4 | 320 | 100.9 | |
| 32BD57-12-PG369 | 369:1 | 21 | 250 | 17 | 5.00 | 2.4 | 320 | 100.9 | |
| 32BD57-12-PG427 | 427:1 | 18 | 250 | 15 | 6.00 | 2.4 | 320 | 100.9 | |
| 32BD57-12-PG516 | 516:1 | 15 | 250 | 12 | 7.00 | 2.4 | 320 | 100.9 | |
| 32BD57-12-PG596 | 596:1 | 13 | 250 | 10 | 8.00 | 2.4 | 320 | 100.9 | |
| 32BD57-12-PG721 | 721:1 | 11 | 250 | 9 | 10.00 | 2.4 | 320 | 100.9 |
10.00 N-m limited by the continuous torque of the maximum load of the gearbox.
24 VDC 1.5A 15W Φ28mm Brushed Planetary Geared Motor
| Model Number | Gear Ratio | Rated Voltage | No-load Speed | No-load Current | Rated Speed | Rated Torque | Rated Current | Weight | Total Length |
| (V DC) | RPM | mA | RPM | N-m | A | g | (L+57)(mm) | ||
| 32BD57-24-PG4 | 3.7:1 | 24 | 2,162 | 150 | 1,650 | 0.08 | 1.5 | 260 | 82.6 |
| 32BD57-24-PG5 | 5.2:1 | 1,538 | 150 | 1,250 | 0.12 | 1.5 | 260 | 82.6 | |
| 32BD57-24-PG19 | 19:1 | 421 | 150 | 340 | 0.40 | 1.5 | 300 | 88.5 | |
| 32BD57-24-PG27 | 27:1 | 296 | 150 | 245 | 0.60 | 1.5 | 300 | 88.5 | |
| 32BD57-24-PG50 | 50:1 | 160 | 150 | 126 | 0.90 | 1.5 | 310 | 88.5 | |
| 32BD57-24-PG71 | 71:1 | 112 | 150 | 88 | 1.20 | 1.5 | 310 | 94.8 | |
| 32BD57-24-PG100 | 100:1 | 80 | 150 | 63 | 1.60 | 1.5 | 310 | 94.8 | |
| 32BD57-24-PG139 | 139:1 | 57 | 150 | 45 | 2.50 | 1.5 | 310 | 94.8 | |
| 32BD57-24-PG189 | 189:1 | 42 | 150 | 33 | 2.80 | 1.5 | 320 | 100.9 | |
| 32BD57-24-PG262 | 262:1 | 30 | 150 | 25 | 3.50 | 1.5 | 320 | 100.9 | |
| 32BD57-24-PG369 | 369:1 | 21 | 150 | 17 | 5.00 | 1.5 | 320 | 100.9 | |
| 32BD57-24-PG427 | 427:1 | 18 | 150 | 15 | 6.00 | 1.5 | 320 | 100.9 | |
| 32BD57-24-PG516 | 516:1 | 15 | 150 | 12 | 7.00 | 1.5 | 320 | 100.9 | |
| 32BD57-24-PG596 | 596:1 | 13 | 150 | 10 | 8.00 | 1.5 | 320 | 100.9 | |
| 32BD57-24-PG721 | 721:1 | 11 | 150 | 9 | 10.00 | 1.5 | 320 | 100.9 |
10.00 N-m limited by the continuous torque of the maximum load of the gearbox.

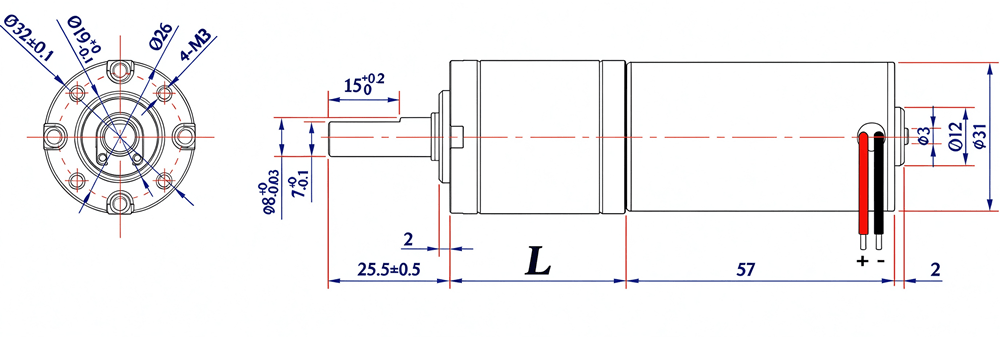

Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 32BD57-PG |
| Product Type | Brushed |
| Lead Time | in stock |
| Insulation Class | B |
| Protection Class | IP20 |
Connection
| P1 | P2 |
| VCC | GND |
| RED | BLK |
