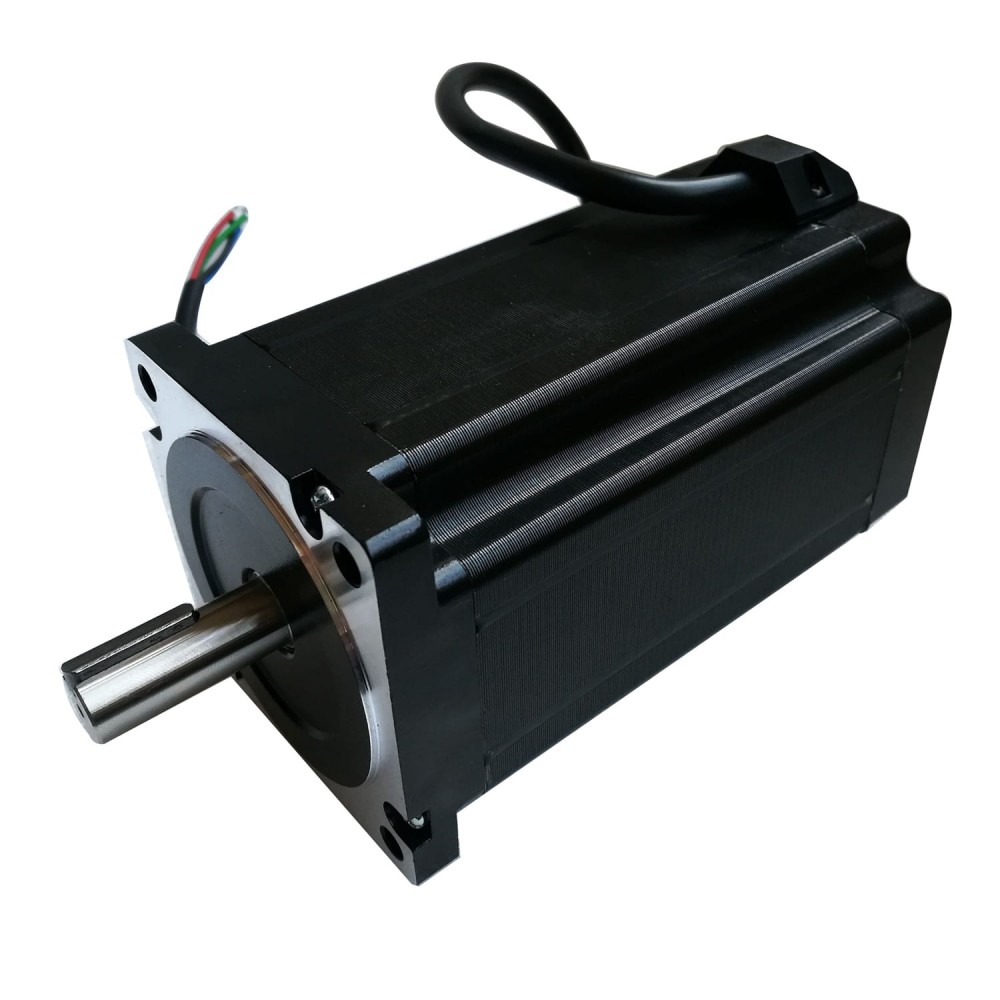

NEMA 34 Stepper Motor Bipolar 1.8deg 12.0Nm 6.0A 86x86x151mm 4 Wires 34HE59-6004S
- Part Number: 34HE59-6004S
- Lead Time: In Stock
- Unit Price: US $50.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
NEMA 34 Stepper Motor Bipolar 1.8deg 12.0Nm 6.0A 86x86x151mm 4 Wires 34HE59-6004S
Electrical Specification
- Manufacturer Part Number: 34HE59-6004S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 12Nm/1704oz.in
- Rated Current/phase: 6.0A
- Phase Resistance: 0.7ohms
- Inductance: 7.9mH
- Driving Voltage: 24-110V

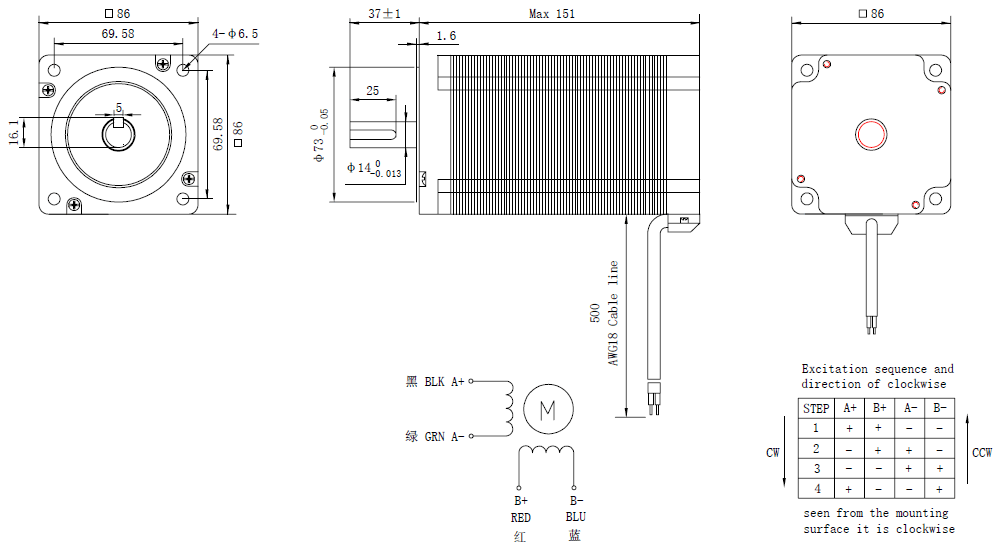

Physical Specification
- Frame Size: 86x86mm
- Body Length: 151mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- Keyway Length: 25mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 5.3kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 34HE59-6004S |
| Product Type | Stepper Motor |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 12.0 |
| Rated Current(A) | 6.0 |
| Driving Voltage(VDC) | 24-110 |
| Stepper Physical Specification | |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 151 |
| Output Shaft Type | Keyway |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 5.3 |
