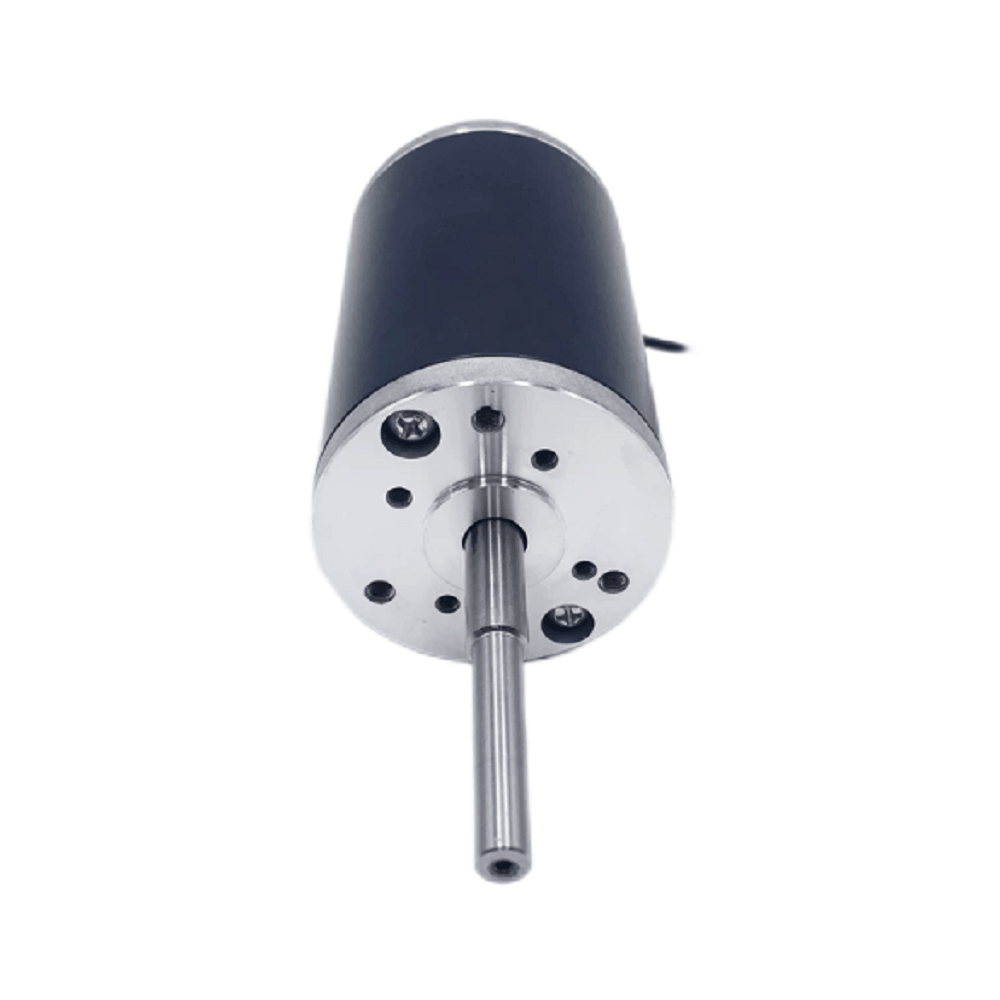

This big size 63mm electric motor is a standard 36 voltage brushed DC motor. It generates a high power 60W and a rated torque 0.25Nm at 2400RPM. A special output shaft is available.
Specifications
- Manufacturer Part Number: 63ZY-3630
- Rated Voltage: 36V
- Rated Curent: 2.5A
- Rated Power: 60W
- No-load Speed: 3000RPM
- Rated Speed: 2400RPM
- Rated Torque: 0.25Nm
- Insulation Class: B
- Frame Size: Φ63mm
- Motor Length: 105mm
- Shaft Diameter: Φ10mm
- Shaft Length: 27.9mm
- Number of Leads: 2
- Lead Length: 300mm
- Weight: 1.2kg
Contact Us
| Product Details | |
| Model Number | 63ZY-3630 |
| Product Type | Brushed |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Electrical Specification | |
| Rated Torque(Nm) | 0.25 |
| Rated Power(W) | 60 |
| Rated Current(A) | 2.5 |
| Rated Voltage(VDC) | 36 |
| Rated Speed(RPM) | 2400 |
| No-load Speed(RPM) | 3000 |
| Physical Specification | |
| Frame Size(mm) | Φ63 |
| Body Length(mm) | 105 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 27.9 |
| Weight(KG) | 1.2 |
