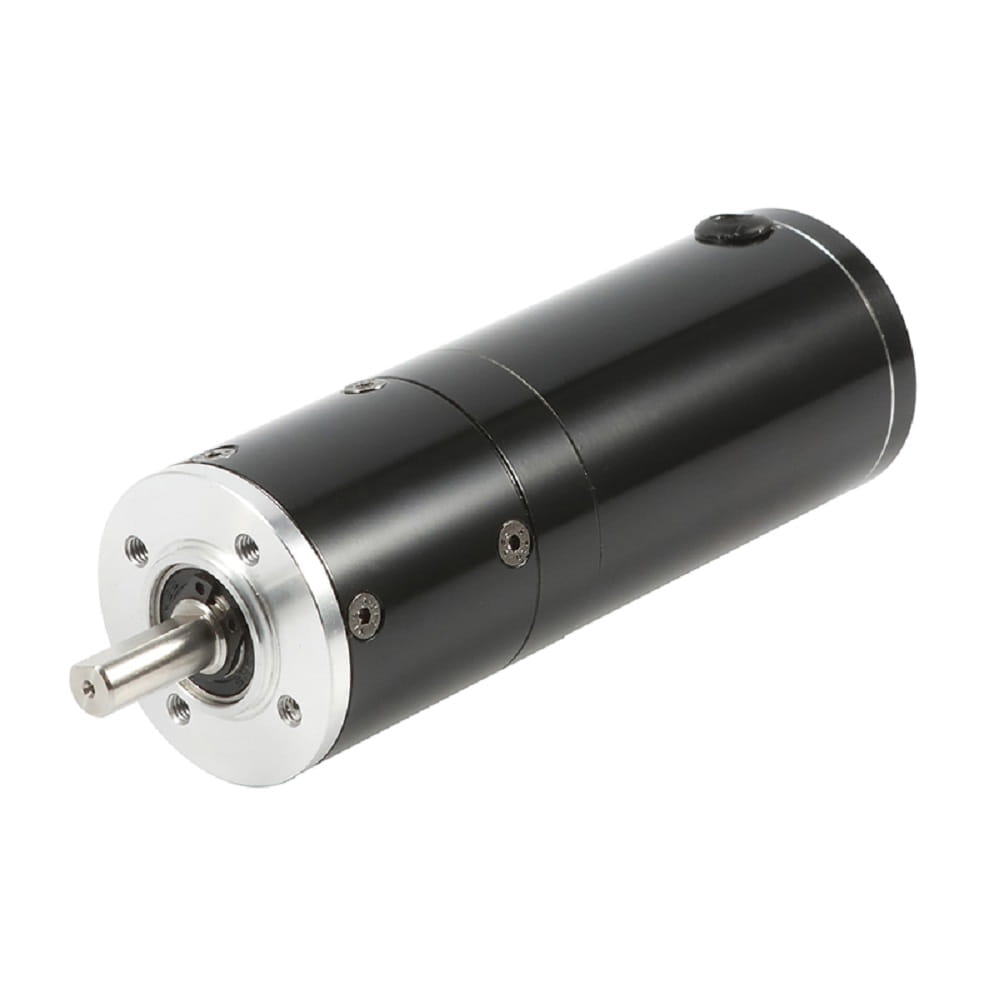

24V 770RPM 0.18Nm 20W Φ36mm Geared Brushless DC Motor Reduction Ratio 5.2:1 Planetary Gearbox
- Part Number: 36BL59-24-PG5
- Lead Time: Pre-Order
- Unit Price: US $80.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 5
This small 36BL59-24-PG series dc geared motor is a 24V size 36mm round brushless engine intagrated with a size 36mm planetary gearbox. It leads to speed range of 3RPM to 3000RPM and output torque upto 2.5Nm. Because of the brushless design, this small geared motor has higher efficiency, higher power-to-weight ratio, faster response time, longer lifespan, more merits compared to general dc motors. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Manufacturer Part Number: 36BL59-24-PG5
- Rated Voltage: 24V DC
- Rated Power: 20W
- Reduction Ratio: 5.2:1
- Rated Torque: 0.18Nm
- No-load Speed: 960RPM
- Rated Speed: 770RPM
- Rated Current: 1.0A
- Insulation Class: B
- Sensor Type: Hall
- Body Length: 84.6mm
- Shaft Diameter: Φ8mm
- Shaft Length: 20mm
- D-cut Length: 15mm
- Weight: 0.5KG
Contact Us
| Product Details | |
| Model Number | 36BL59-24-PG5 |
| Product Type | Brushless |
| Lead Time | Two Weeks |
| Insulation Class | B |
| Protective Grade | IP20 |
| Electrical Specification | |
| Rated Torque(Nm) | 0.18 |
| Rated Power(W) | 20 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 770 |
| No-load Speed(RPM) | 960 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | Φ36 |
| Body Length(mm) | 84.6 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 20 |
| Weight(KG) | 0.5 |
L1: 59mm, L2: 25.6mm
