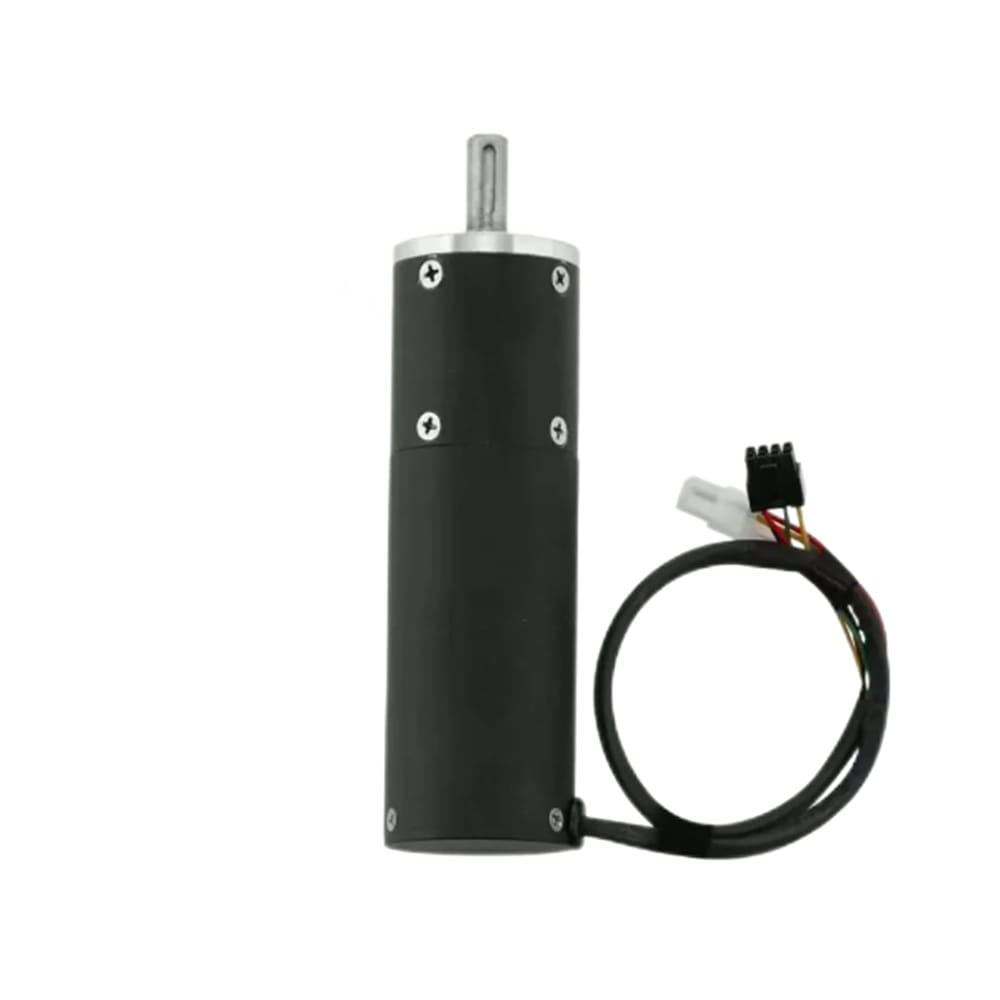

24V 175RPM 10 N-m 100W Φ45mm Geared Brushless DC Motor Reduction Ratio 40:1 Planetary Gearbox
- Part Number: 45BLD24100-PG40
- Lead Time: In Stock
- Unit Price: US $120.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This compact 100W geared brushless dc motor is integrated with a planetary gearbox of reduction ratio 40:1, which can generate a maximum speed 175 RPM and output torque 10 N-m. It is widely used for Smart Logistics, Textile Industry, Medical Equipment, Solar Energy, Industrial Robotics, Turnstile Equipment.
Specification
- Manufacturer Part Number: 45BLD24100-PG40
- Rated Voltage: 24 VDC
- Rated Power: 100 W
- Reduction Ratio: 40:1
- Maximum Torque: 10 N-m
- Maximum Speed: 175 RPM
- Rated Current: 4.75 A
- Insulation Class: B
- Sensor Type: Hall
- Body Length: 140.5 mm
- Shaft Diameter: Φ10 mm
- Shaft Length: 23 mm
- Keyway Length: 16 mm
- Number of Wires: 8
- Wires Length: 400 mm
- Weight: 1.5 kg
Connection
| MA | MB | MC | HA | HB | HC | +5V | GND |
| Yellow | Red | White | Blue | Green | Yellow | Black | Red |
Contact Frankhumotor
| Product Details | |
| Model Number | 45BLD24100-PG40 |
| Product Type | Brushless |
| Lead Time | in stock |
| Electrical Specification | |
| Rated Torque(Nm) | 10 |
| Rated Power(W) | 100 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 175 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | Φ45 |
| Body Length(mm) | 140.5 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 23 |
| Weight(KG) | 1.5 |
L=140.5mm
