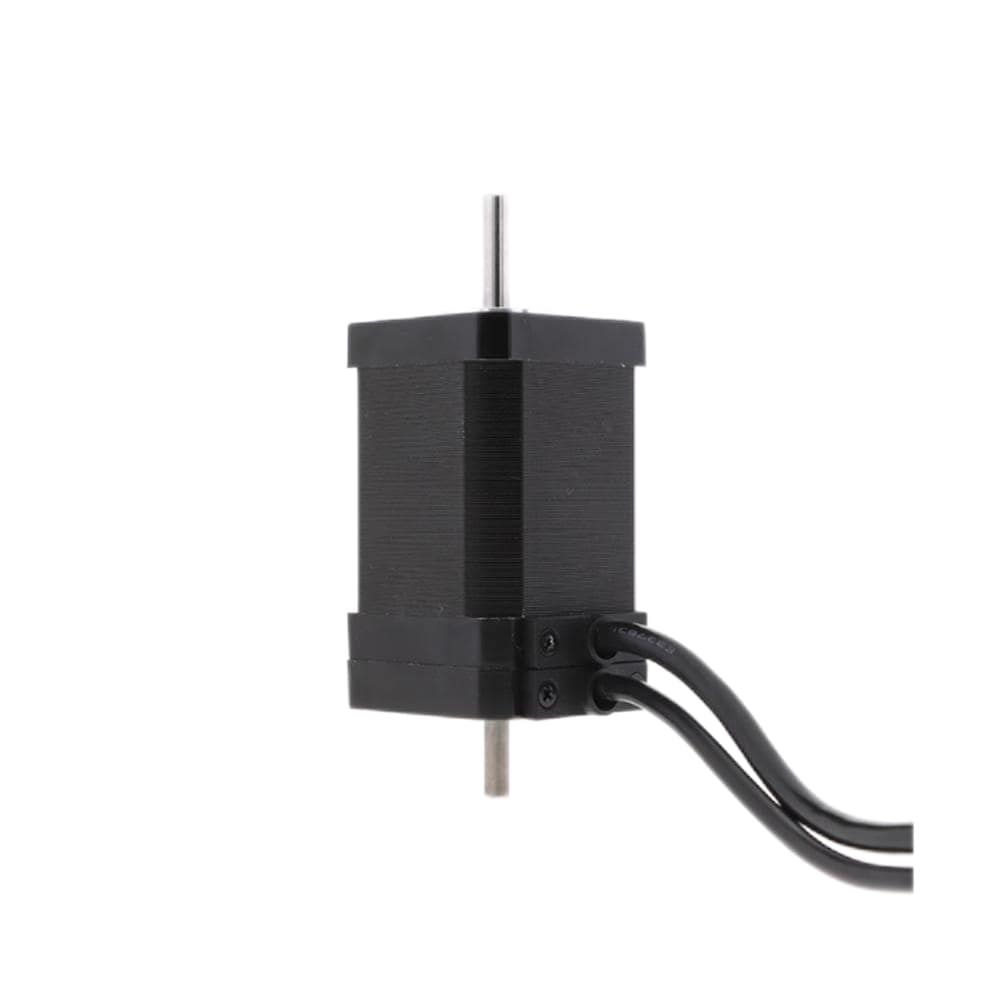

Dual Shaft 24V 3000RPM 0.2Nm 65W 3.5A 42x42x70mm Brushless DC Motor with Rear Shaft
- Part Number: 42BLS70-2430B
- Lead Time: In Stock
- Unit Price: US $55.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This dual shaft size 42mm electric motor is a standard 24 voltage brushless DC motor with a 16mm length of rear shaft, which generates a high power 65W and a strong torque 0.2Nm at RATED speed 3000RPM. It is suitable for textile machines, robotics, autobikes, cooling fans, pumps and other industrial applications or household appliances. The matched drive is BL2406.
Specifications
- Manufacturer Part Number: 42BLS70-2430B
- Rated Voltage: 24 VDC
- Rated Current: 3.5 A
- Rated Power: 65 W
- No-loaded Speed: 4000 RPM
- Rated Speed: 3000 RPM
- Rated Torque: 0.2 Nm
- Insulation Class: B
- Sensor Type: Hall

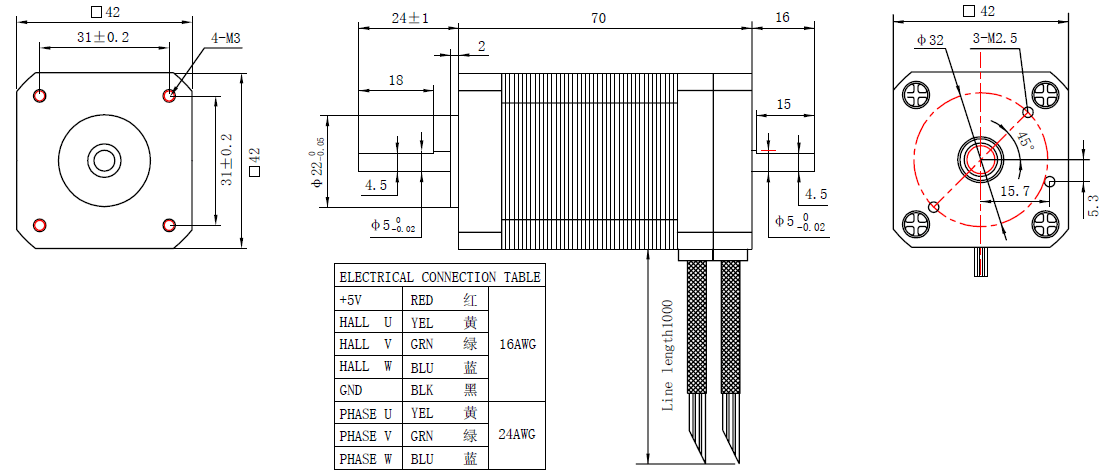

- Frame Size: 42x42 mm
- Motor Length: 70 mm
- Front Shaft Diameter: Φ5 mm
- Front Shaft Length: 24 mm
- Rear Shaft Diameter: Φ5 mm
- Rear Shaft Length: 16 mm
- Weight: 0.5 kg
Connection
| U | V | W | +5V | HA | HB | HC | GND |
| YEL | GRN | BLU | RED | YEL | GRN | BLU | BLK |
| 16AWG | 24AWG | ||||||
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 42BLS70-2430B |
| Product Type | Brushless |
| Lead Time | in stock |
| Insulation Class | B |
| Protection Class | IP20 |
| Electrical Specification | |
| Rated Torque(N·m) | 0.2 |
| Rated Power(W) | 65 |
| Rated Current(A) | 3.5 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 3000 |
| No-load Speed(RPM) | 4000 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 70 |
| Front Shaft Diameter(mm) | 5 |
| Rear Shaft Diameter(mm) | 5 |
| Front Shaft Length(mm) | 24 |
| Rear Shaft Length(mm) | 16 |
| Weight(KG) | 0.5 |
