24V 3000RPM 0.22Nm 70W 4.0A 57x57x75mm Brushless DC Motor
- Part Number: 57HS75-2430
- Lead Time: In Stock
- Unit Price: US $55.00
- Sales: 2
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

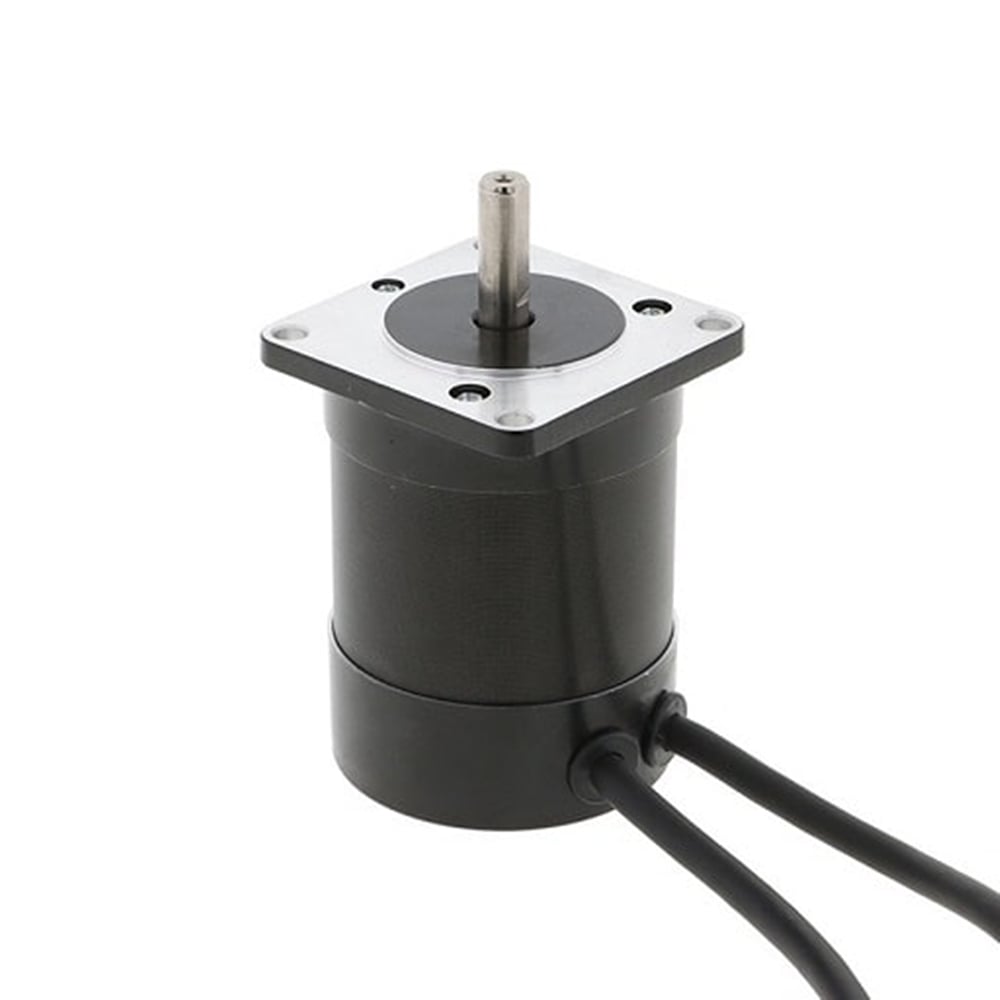

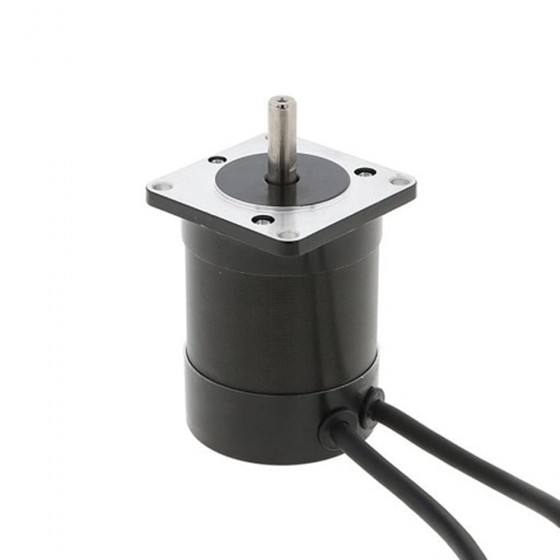

This size 57mm electric motor is a standard 24 voltage brushless DC motor, which generates a high power 70W and a strong torque 0.22Nm at RATED speed 3000RPM. It is suitable for textile machines, robotics, autobikes, cooling fans, pumps and other industrial applications or household appliances.
Specifications
- Manufacturer Part Number: 57HS75-2430
- Rated Voltage: 24V
- Rated Curent: 4.0A
- Rated Power: 70W
- No-loaded Speed: 4200RPM
- Rated Speed: 3000RPM
- Rated Torque: 0.22Nm
- Insulation Class: B
- Sensor Type: Hall

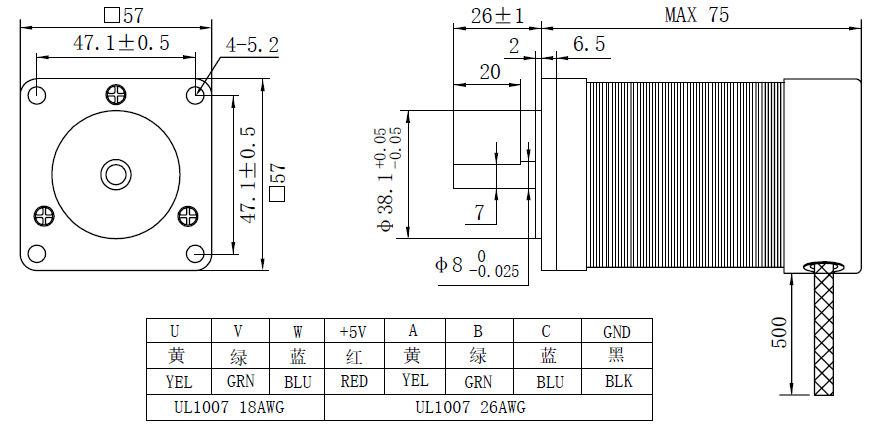

- Frame Size: 57x57mm
- Motor Length: 75mm
- Shaft Diameter: Φ8mm
- Shaft Length: 26mm
- D-cut Length: 20mm
- Weight: 0.75KG
Contact Us
| Product Details | |
| Model Number | 57HS75-2430 |
| Product Type | Brushless |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Electrical Specification | |
| Rated Torque(Nm) | 0.22 |
| Rated Power(W) | 70 |
| Rated Current(A) | 4.0 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 4200 |
| No-load Speed(RPM) | 3000 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 75 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 26 |
| Weight(KG) | 0.75 |
