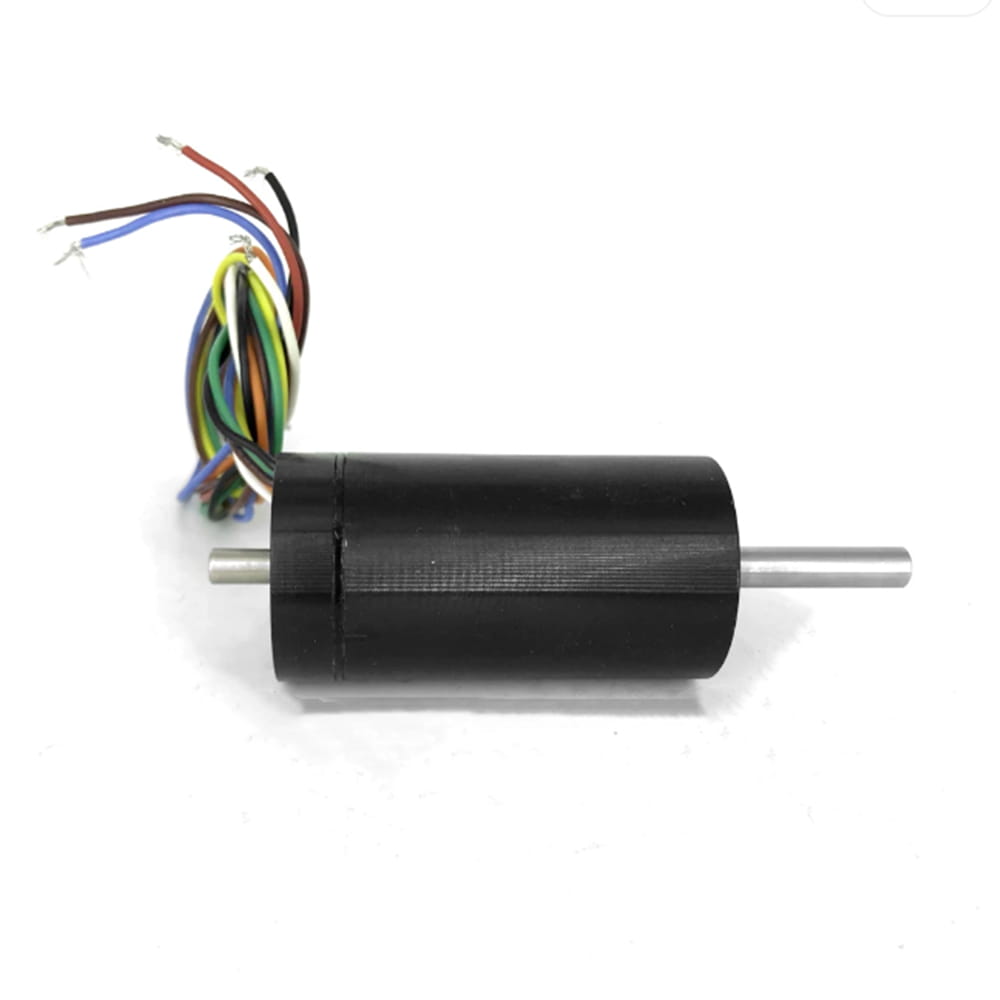

24V 13000RPM 0.085Nm 110W 5.0A Φ32x61mm Brushless Coreless DC Motor Dual Shaft
- Part Number: 32BL61B168-D
- Lead Time: In Stock
- Unit Price: US $125.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This high speed small size 32mm dual shaft electric motor is a standard 24 voltage brushless DC coreless motor, which generates a high power 110W and a strong torque 0.085Nm at RATED speed 13000RPM. It has the advantages of Zero Cogging Torque, Rapid Dynamic Respons, High Efficiency & Low Losses, Compact Power Density, Minimal Electromagnetic Interference (EMI), etc. Because of their precise motion and rapid response, coreless motors are widely used in medical infusion pumps, surgical power tools, high-end camera gimbals, robotics joints, and aerospace actuators.

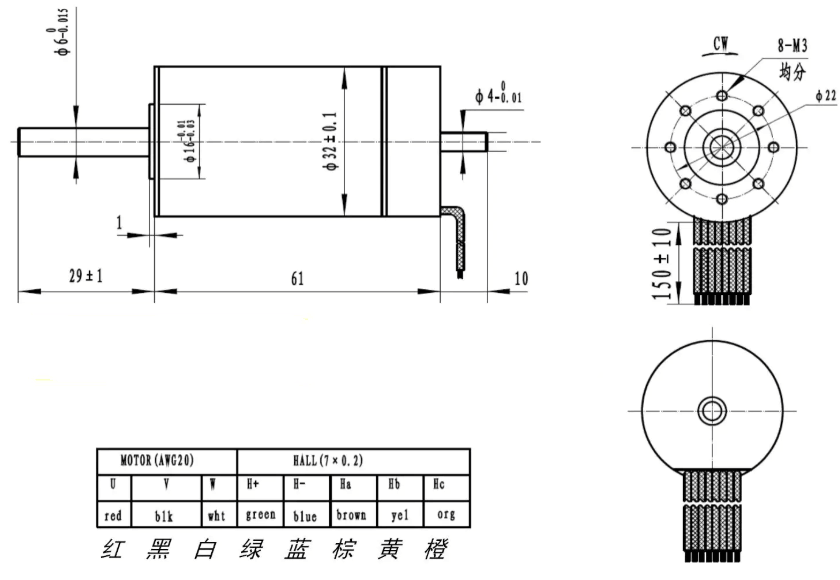

32BL61B168-D Specifications
- Manufacturer Part Number: 32BL61B168-D
- Rated Voltage: 24V
- Rated Curent: 5.0A
- Rated Power: 110W
- Rated Speed: 13000RPM
- Rated Torque: 0.085Nm
- Insulation Class: F
- Sensor Type: Hall
- Frame Size: Φ32mm
- Motor Length: 61mm
- Front Shaft Diameter: Φ6mm
- front Shaft Length: 29mm
- Rear Shaft Diameter: Φ4mm
- Rear Shaft Length: 10mm
- Weight: 0.22kg
Connection
| MA | MB | MC | +5V | GND | HA | HB | HC |
| RED | BLK | WHT | GRN | BLU | BRN | YEL | ORG |
Contact Us
| Product Details | |
| Model Number | 32BL61B168-D |
| Product Type | Brushless |
| Lead Time | in stock |
| Insulation Class | F |
| Protective Grade | IP20 |
| Electrical Specification | |
| Rated Torque(Nm) | 0.085 |
| Rated Power(W) | 110 |
| Rated Current(A) | 5.0 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 13000 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | Φ32 |
| Body Length(mm) | 61 |
| Front Shaft Diameter(mm) | 6 |
| Rear Shaft Diameter(mm) | 4 |
| Front Shaft Length(mm) | 29 |
| Rear Shaft Length(mm) | 10 |
| Weight(KG) | 0.22 |
The front shaft length 19mm with diameter 5mm is also available.
