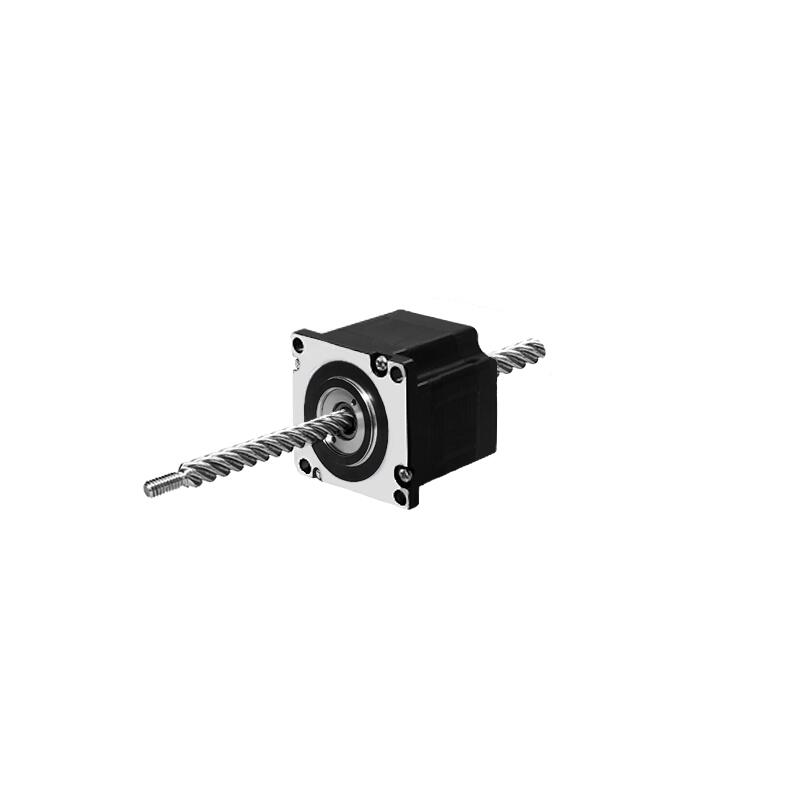

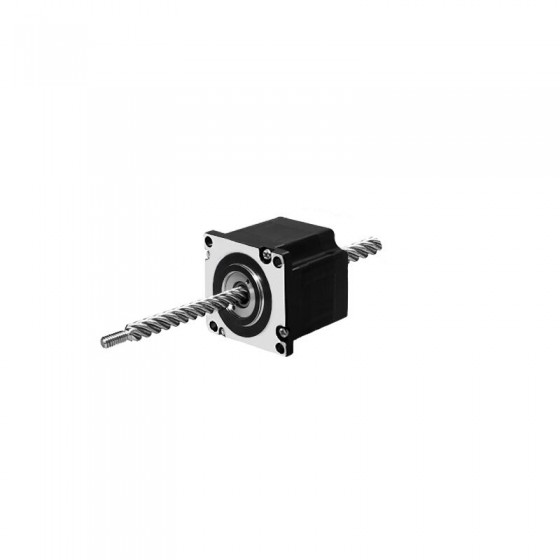

60000 Series NEMA 24 Linear Actuator Stepper Motor Non-captive Single Stack Lead 6.35mm Length 150mm
- Part Number: 60PN47-3004S-150F8
- Lead Time: Four Weeks
- Unit Price: $150.00
- *Ship from China
This linear motion motor is 60000 series size 24 stepper motor with Non-captive linear actuator type. The motor part has single stack length 47mm, step angle 1.8 degree and bipolar 4 wires connection. It works with a diameter Φ9.525mm, lead screw length of 150mm and the linear travel 0.03175mm per step. Compared to NEMA 23 linear stepper motor, NEMA 24 has a stronger thrust output with same speed.
Electrical Specification
Part Number: 60PN47-3004S-150F8
Motor Type: Non-captive
Step Angle: 1.8deg
Bipolar/Unipolar: Bipolar
Rated Current/phase: 3.0A
Phase Resistance: 0.6ohms
Inductance: 1.6mH
Driving Voltage: 24-48VDC
Physical Specification
Frame Size: 60x60mm
Body Length: 47mm
Lead Screw Length: 150mm
Lead Screw Diameter: Φ9.525mm
Lead Travel/Revolution: 6.35mm
Lead Travel/Step: 0.03175mm
Number of Leads: 4
Lead Length: 300mm
Weight: 680g
Motor Connection
Contact Us
| Motor Specification | |
| Motor Type | Non-captive |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Rated Current(A) | 3.0 |
| Frame Size(mm) | 60x60 |
| Stack Length(mm) | 47 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 150 |
| Lead Screw Diameter(mm) | 9.525 |
| Lead Travel/Revolution(mm) | 6.35 |
| Lead Travel/Step(mm) | 0.03175 |
