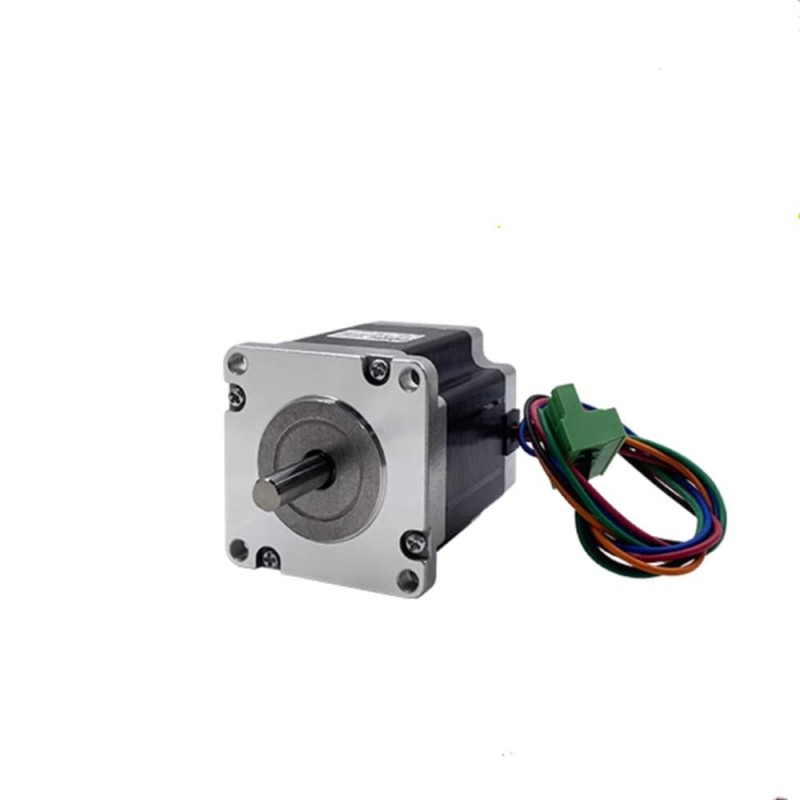

5 Phase NEMA 24 Stepper Motor Dual Shaft 0.72deg 1.3A 0.85Nm/120.7oz.in 60x60mm 5 Wires
- Part Number: SS2402713B
- Lead Time: In Stock
- Unit Price: $85.00
- Sales: 6
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This big electric dc motor is a 5 Phase NEMA 24 stepper motor dual shaft with 0.72degree step angle/500 steps per revolution & size 60x60mm, which can generates a good torque 0.85Nm/120.7oz.in and 0-1500RPM.
Electrical Specification
- Part Number: SS2402713B
- Step Angle: 0.72deg
- Phase Number: 5
- Holding Torque: 0.85Nm/120.7oz.in
- Rated Current/phase: 1.3A
- Phase Resistance: 1.2ohms
- Driving Voltage: 24-72V

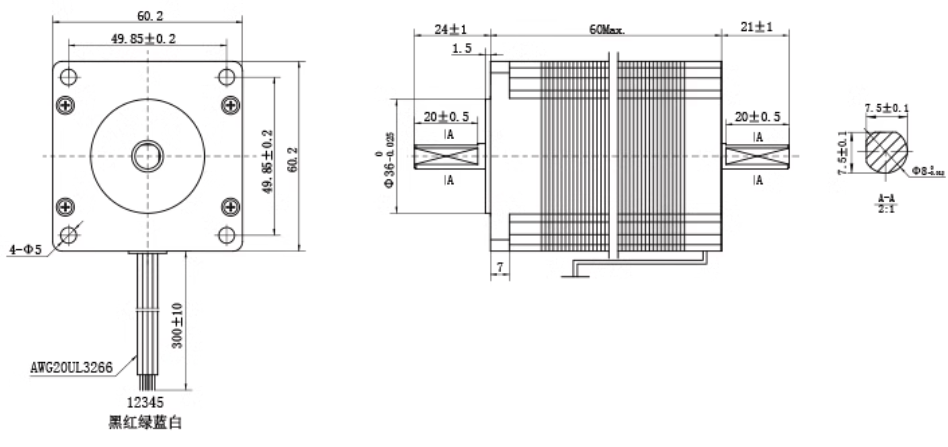

Physical Specification
- Frame Size: 60x60mm
- Body Length: 60mm
- Front Shaft Diameter: Φ8mm
- Front Shaft Length: 24mm
- Front D-cut Length: 20mm
- Front Shaft Diameter: Φ8mm
- Front Shaft Length: 21mm
- Front D-cut Length: 20mm
- No. of Leads: 5
- Lead Length: 300mm
- Weight: 0.9kg
Contact Us
| Electrical Specification | |
| Phase Number | 5 |
| Step Angle(°) | 0.72 |
| Holding Torque(Nm) | 0.85 |
| Holding Torque(oz.in) | 120.7 |
| Rated Current(A) | 1.3 |
| Phase Resistance(ohm) | 1.2 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 60x60 |
| Body Length(mm) | 60 |
| Front Shaft Diameter(mm) | 8 |
| Front Shaft Length(mm) | 24 |
| Rear Shaft Diameter(mm) | 8 |
| Rear Shaft Length(mm) | 21 |
| No. of Leads | 5 |
| Lead Length(mm) | 300 |
| Weight(KG) | 0.9 |
