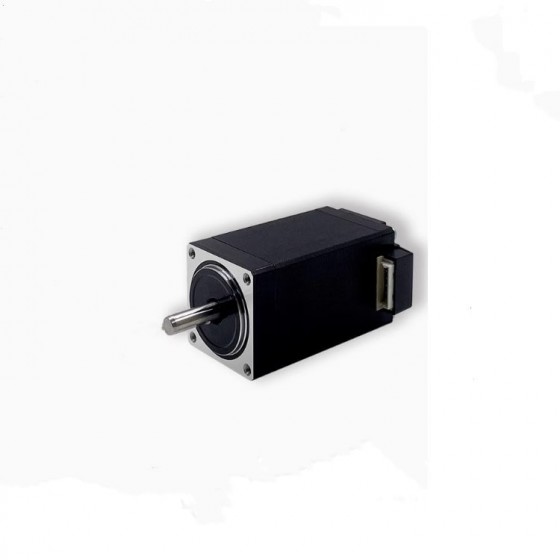

5 Phase NEMA 11 Stepper Motor 0.72deg 1.7A 0.09Nm/12.78oz.in 28x51.8mm 5 Wires
- Part Number: SS1102E12A
- Lead Time: In Stock
- Unit Price: $75.00
- Sales: 1
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This small electric dc motor is a 5 Phase NEMA 11 stepper motor dual shaft with 0.72degree step angle/500 steps per revolution & size 28x51.8mm, which can generates a good torque 0.09Nm/12.78oz.in and 0-1500RPM.
Electrical Specification
- Part Number: SS1102E12A
- Step Angle: 0.72deg
- Phase Number: 5
- Holding Torque: 0.09Nm/12.78oz.in
- Rated Current/phase: 1.7A
- Phase Resistance: 0.9ohms
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 28x28mm
- Body Length: 51.8mm
- Shaft Diameter: Φ5mm
- Shaft Length: 15mm
- D-cut Length: 10mm
- No. of Leads: 5
- Lead Length: 300mm
- Weight: 0.2kg
Contact Us
| Electrical Specification | |
| Phase Number | 5 |
| Step Angle(°) | 0.72 |
| Holding Torque(Nm) | 0.09 |
| Holding Torque(oz.in) | 12.78 |
| Rated Current(A) | 1.7 |
| Phase Resistance(ohm) | 0.9 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 28x28 |
| Body Length(mm) | 51.8 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 15 |
| No. of Leads | 5 |
| Lead Length(mm) | 300 |
| Weight(KG) | 0.2 |

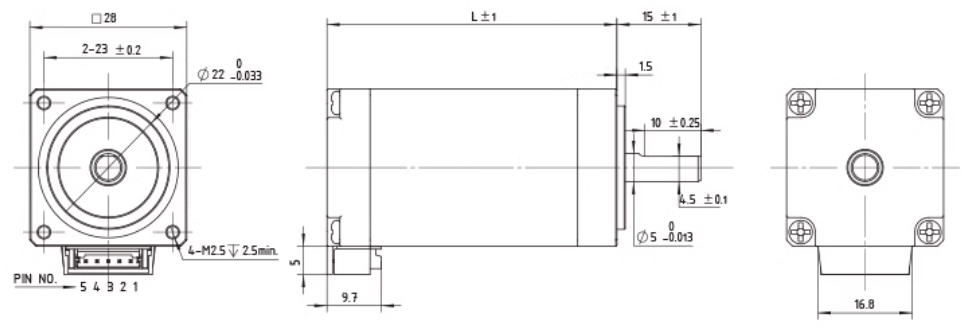

L=51.8mm
