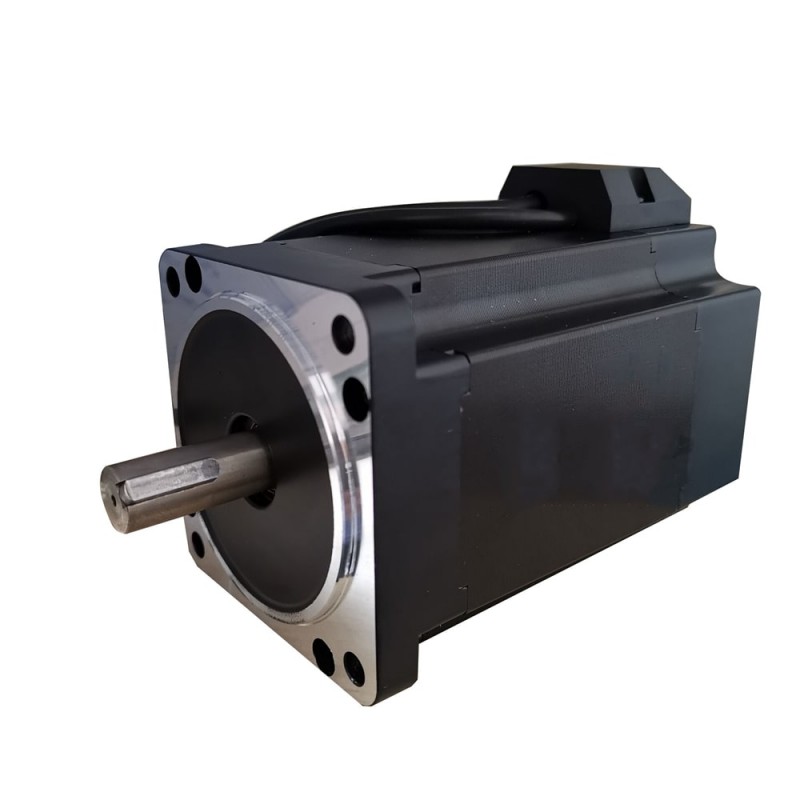

48V 3500RPM 2.5Nm 750W 21A 86x86x130mm Brushless DC Motor
- Part Number: 86HS130-4830
- Lead Time: One Week
- Unit Price: $99.00
- Sales: 1
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 86mm electric motor is a standard 48 voltage brushless DC motor, which generates a high power 750W and a strong torque 2.5Nm at RATED speed 3000RPM. It is suitable for textile machines, robotics, autobikes, cooling fans, pumps and other industrial applications or household appliances.
Specifications
- Part Number: 86HS130-4830
- Rated Voltage: 48V
- Rated Curent: 21A
- Rated Power: 750W
- No-loaded Speed: 3500RPM
- Rated Speed: 3000RPM
- Rated Torque: 2.5Nm
- Insulation Class: B
- Sensor Type: Hall
- Frame Size: 86x86mm
- Motor Length: 130mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- Keyway Length: 25mm
- Weight: 4.3KG
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushless |
| Rated Voltage(VDC) | 48 |
| Rated Current(A) | 21 |
| Rated Power(W) | 750 |
| Rated Torque(Nm) | 2.5 |
| Rated Speed(RPM) | 3000 |
| No-load Speed(RPM) | 3500 |
| Insulation Class | B |
| Sensor Type | Hall |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 130 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Weight(KG) | 4.3 |
L=130mm
