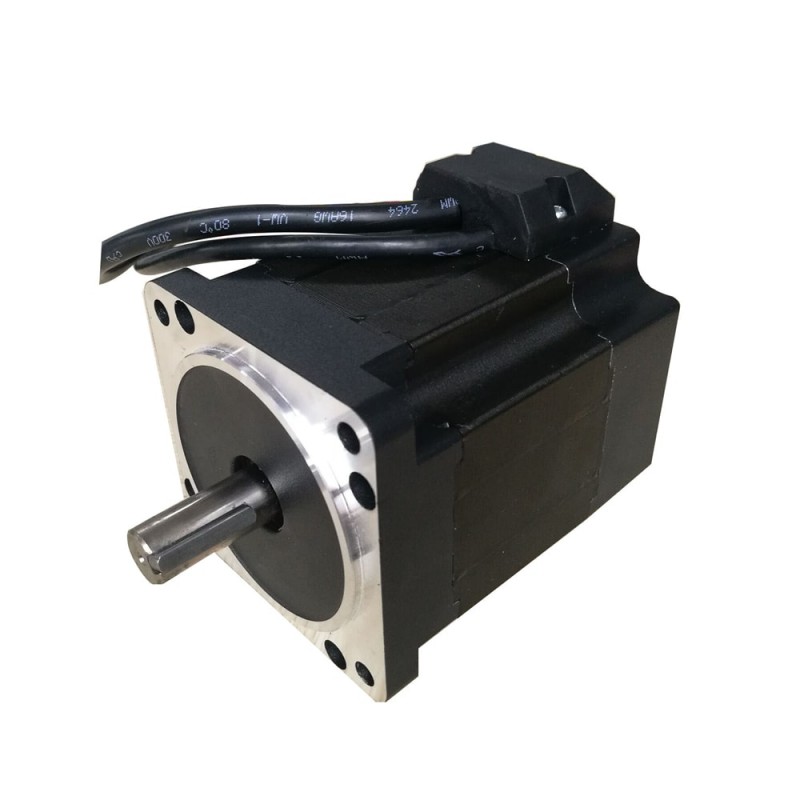

48V 3500RPM 1.8Nm 550W 15A 86x86x105mm Brushless DC Motor
- Part Number: 86HS105-4830
- Lead Time: One Week
- Unit Price: $89.00
- Sales: 1
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 86mm electric motor is a standard 48 voltage brushless DC motor, which generates a high power 550W and a strong torque 1.8Nm at RATED speed 3000RPM. It is suitable for textile machines, robotics, autobikes, cooling fans, pumps and other industrial applications or household appliances.
Specifications
- Part Number: 86HS105-4830
- Rated Voltage: 48V
- Rated Curent: 15A
- Rated Power: 550W
- No-loaded Speed: 3500RPM
- Rated Speed: 3000RPM
- Rated Torque: 1.8Nm
- Insulation Class: B
- Sensor Type: Hall
- Frame Size: 86x86mm
- Motor Length: 105mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- Keyway Length: 25mm
- Weight: 2.9KG
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushless |
| Rated Voltage(VDC) | 48 |
| Rated Current(A) | 15 |
| Rated Power(W) | 550 |
| Rated Torque(Nm) | 1.8 |
| Rated Speed(RPM) | 3000 |
| No-load Speed(RPM) | 3500 |
| Insulation Class | B |
| Sensor Type | Hall |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 105 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Weight(KG) | 2.9 |
L=105mm
