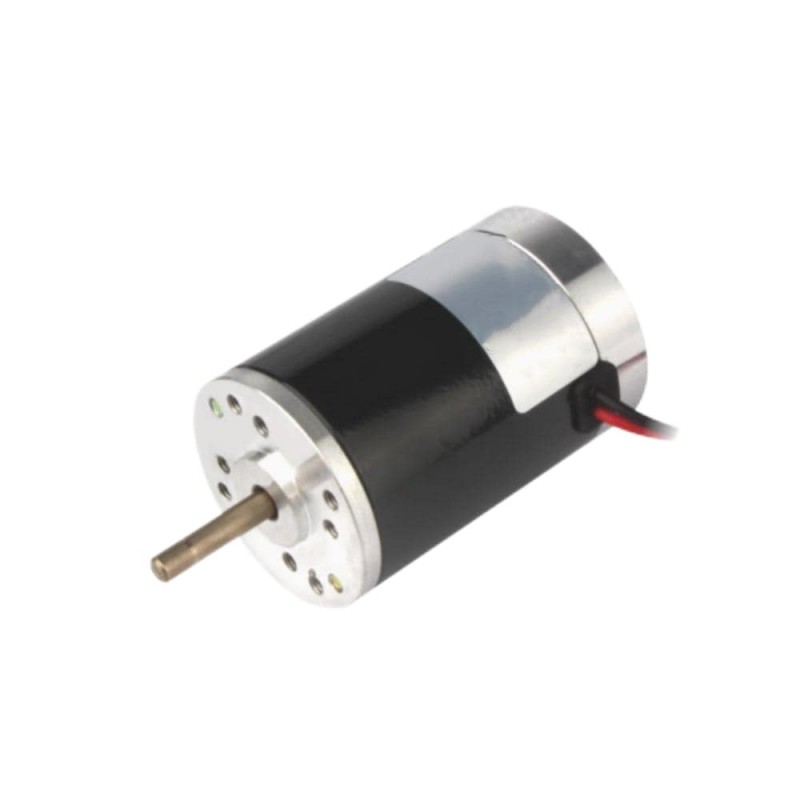

This size 45mm electric motor is a standard 24 voltage brushed permanent magnetic DC motor. It generates a power 30W and a rated torque 0.085Nm at 6000RPM.
Specifications
- Part Number: 45WS68-2480
- Rated Voltage: 24V
- Rated Curent: 1.5A
- Rated Power: 30W
- No-loaded Speed: 8000RPM
- Rated Speed: 6000RPM
- Rated Torque: 0.085Nm
- Insulation Class: B

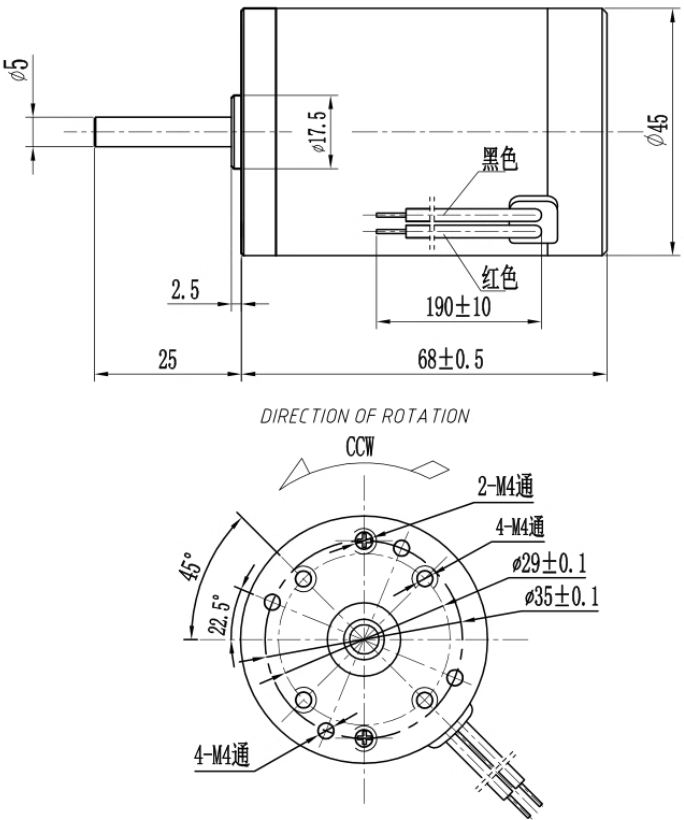

- Frame Size: Φ45mm
- Motor Length: 68mm
- Shaft Diameter: Φ5mm
- Shaft Length: 25mm
- Number of Leads: 2
- Lead Length: 190mm
- Weight: 0.36kg
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushed |
| Rated Voltage(VDC) | 24 |
| Rated Current(A) | 1.5 |
| Rated Power(W) | 30 |
| Rated Torque(Nm) | 0.085 |
| Rated Speed(RPM) | 6000 |
| No-load Speed(RPM) | 8000 |
| Insulation Class | B |
| Frame Size(mm) | Φ45 |
| Body Length(mm) | 68 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 0.36 |
