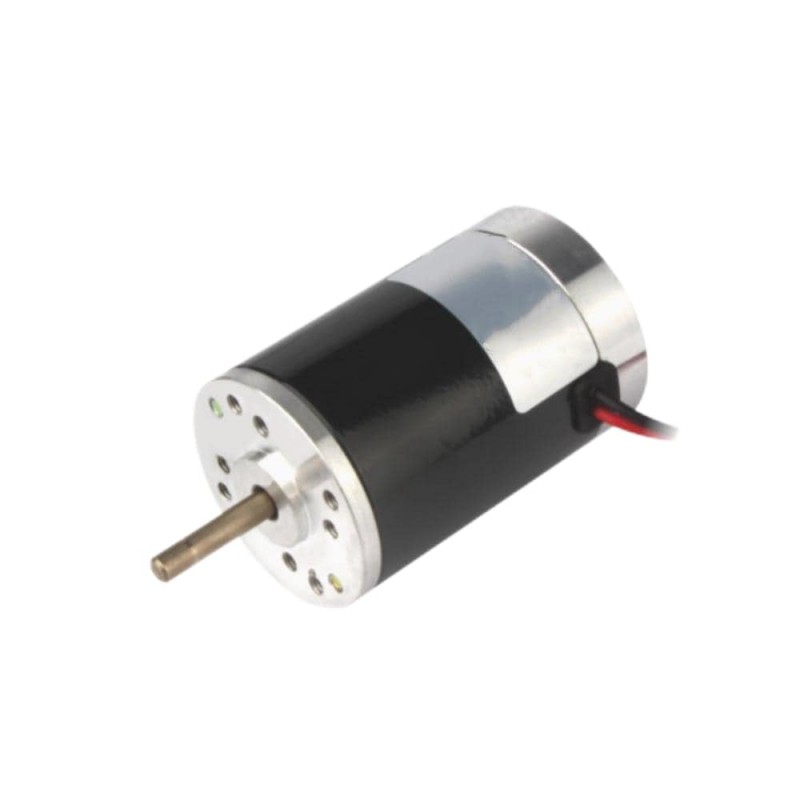

This size 45mm electric motor is a standard 24 voltage brushed permanent magnetic DC motor. It generates a power 10W and a rated torque 0.05Nm at 2625RPM.
Specifications
- Part Number: 45WS68-2430
- Rated Curent: 0.7A
- Rated Power: 10W
- No-loaded Speed: 3500RPM
- Rated Speed: 2625RPM
- Rated Torque: 0.05Nm
- Insulation Class: B
- Frame Size: Φ45mm
- Motor Length: 68mm
- Shaft Diameter: Φ5mm
- Shaft Length: 25mm
- Number of Leads: 2
- Lead Length: 190mm
- Weight: 0.36kg
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushed |
| Rated Voltage(VDC) | 24 |
| Rated Current(A) | 0.7 |
| Rated Power(W) | 10 |
| Rated Torque(Nm) | 0.05 |
| Rated Speed(RPM) | 2625 |
| No-load Speed(RPM) | 3500 |
| Insulation Class | B |
| Frame Size(mm) | Φ45 |
| Body Length(mm) | 68 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 0.36 |
