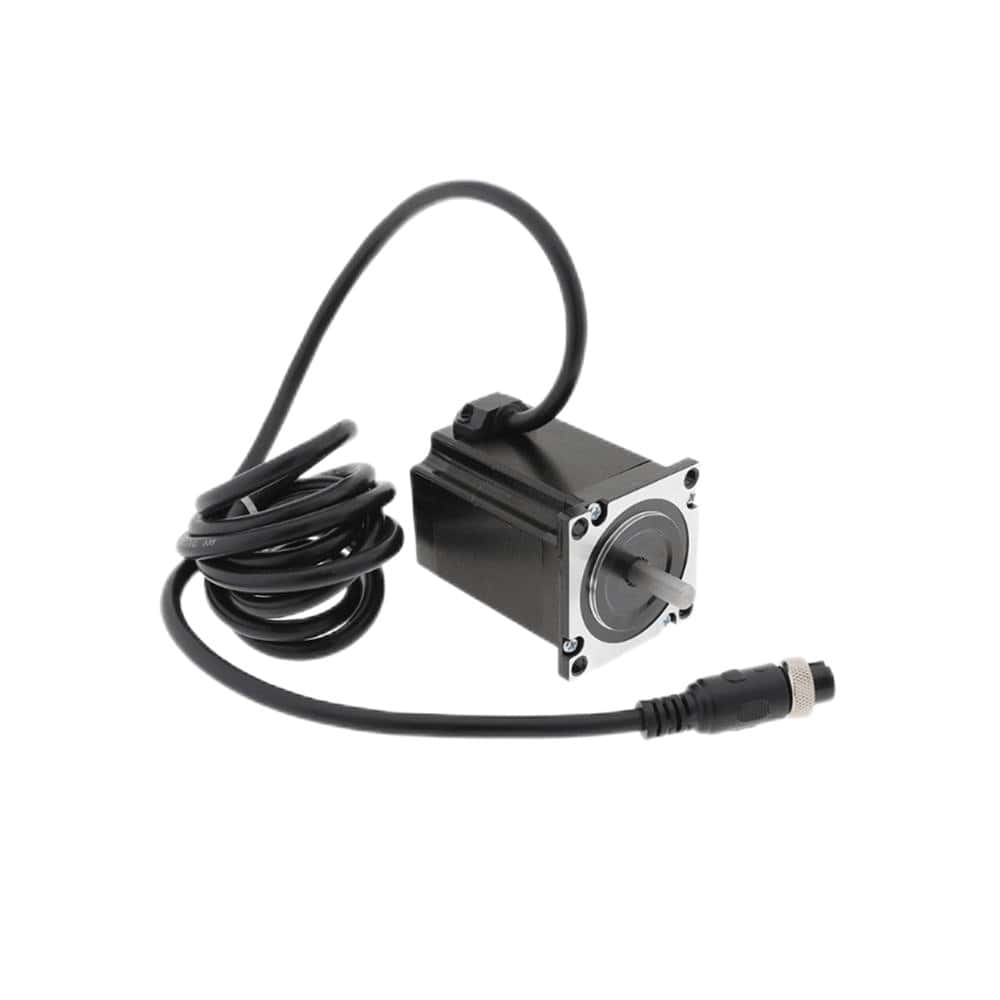

3D Printer NEMA 23 Stepper Motor 4.2A 1.9Nm/269.8oz.in 57x76mm Φ8mm Shaft 2000mm Cable
- Part Number: 57HB76-4204S2
- Lead Time: In Stock
- Unit Price: $22.50
- Sales: 8
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
3D Printer NEMA 23 Stepper Motor 4.2A 1.9Nm/269.8oz.in 57x76mm Φ8mm Shaft 2000mm Cable
Electrical Specification
- Part Number: 57HB76-4204S2
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 1.9Nm/269.8oz.in
- Rated Current/phase: 4.2A
- Phase Resistance: 0.6ohms
- Inductance: 1.8mH
- Driving Voltage: 24-72V

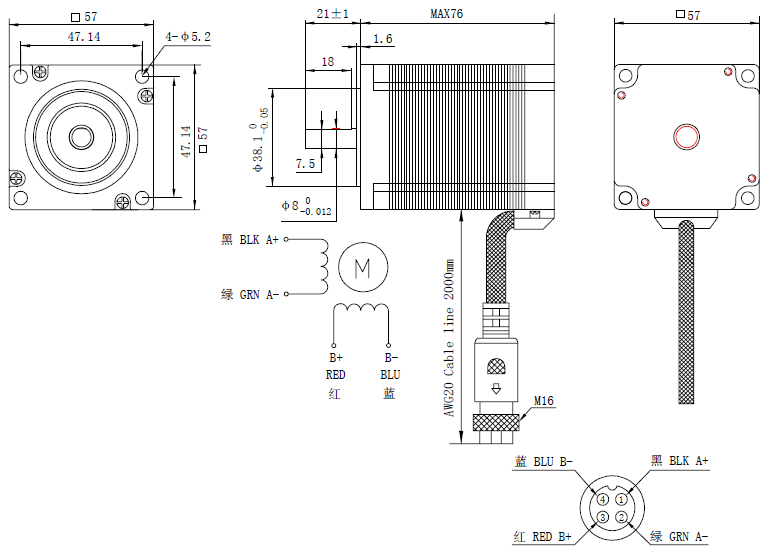

Physical Specification
- Frame Size: 57x57mm
- Body Length: 76mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 18mm
- Number of Leads: 4
- Lead Length: 2000mm
- Weight: 1.1kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 1.9 |
| Holding Torque(oz.in) | 269.8 |
| Rated Current(A) | 4.2 |
| Phase Resistance(ohm) | 0.6 |
| Phase Inductance(mH) | 1.8 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 76 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| No. of Leads | 4 |
| Lead Length(mm) | 2000 |
| Weight(KG) | 1.2 |
