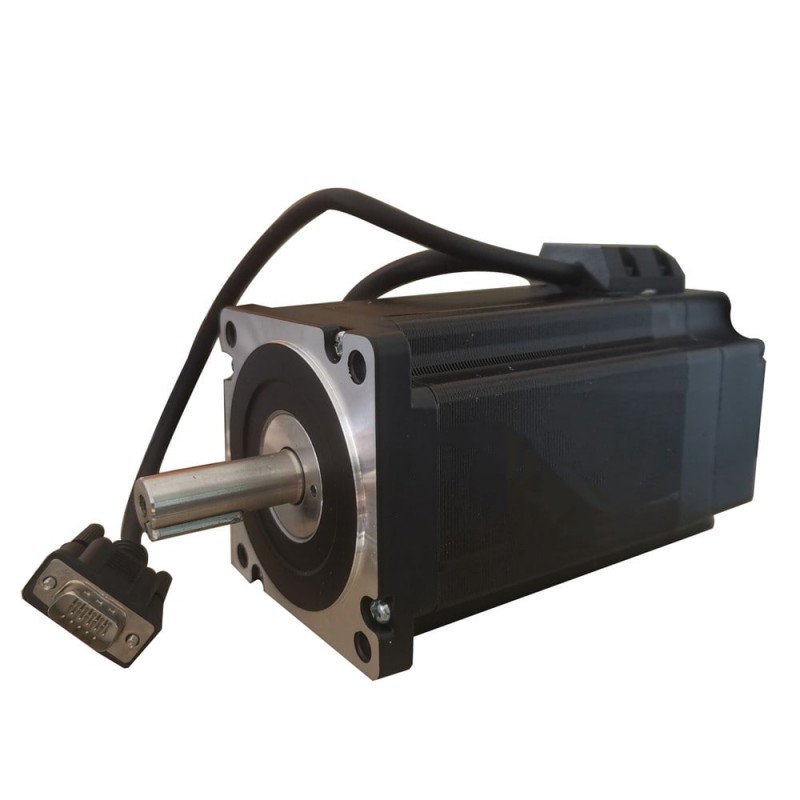

3 Phase NEMA 34 Stepper Motor 1.2deg 3.0A 7Nm/994oz.in 86x127mm with 1000CPR Encoder
- Part Number: 86HS127-3003D-E1000
- Lead Time: One Week
- Unit Price: $130.00
- Sales: 1
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This large closed-loop 3 phase NEMA 34 stepper motor, which is integrated with a 1000cpr optical incremental encoder, has a rated current of 3.0A and generates a good holding 7.0Nm/994oz.in. It performs more accuracy, higher torque, less motor heating, lower power consumption, and better response to external factors, compared to the open loop stepper motors.

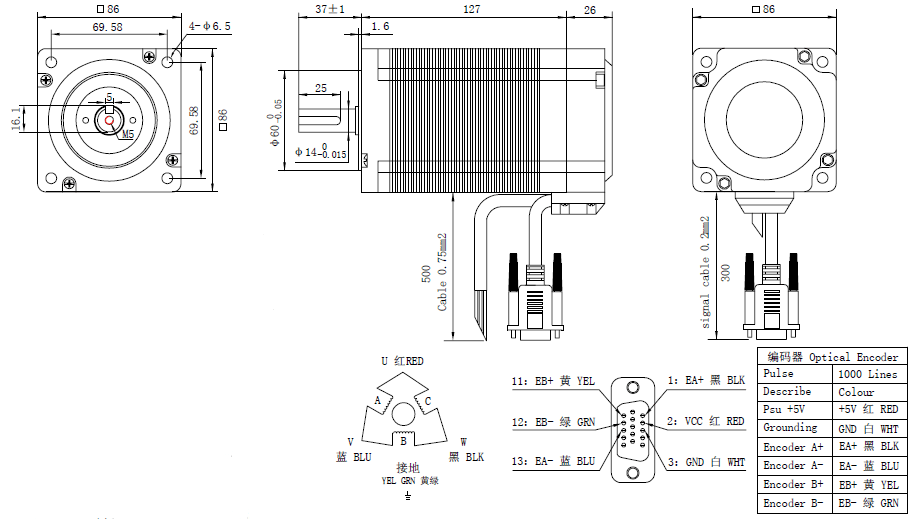

Motor Specification
- Part Number: 86HS127-3003D-E1000
- Step Angle: 1.2deg
- Phase Number: 3
- Holding Torque: 7.0Nm/994oz.in
- Rated Current/phase: 3.0A
- Driving Voltage: 24-110V
- Frame Size: 86x86mm
- Body Length: 127mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- Keyway Length: 25mm
- No. of Leads: 3
- Lead Length: 500mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000CPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 300mm
- Supply Voltage: 5.0V
Contact Us
| Motor Specification | |
| Phase Number | 3 |
| Step Angle(°) | 1.2 |
| Holding Torque(Nm) | 7.0 |
| Holding Torque(oz.in) | 994 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 126 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Driving Voltage(VDC) | 24-110 |
| Encoder Specification | |
| Encoder Resolution(CPR) | 1000 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
