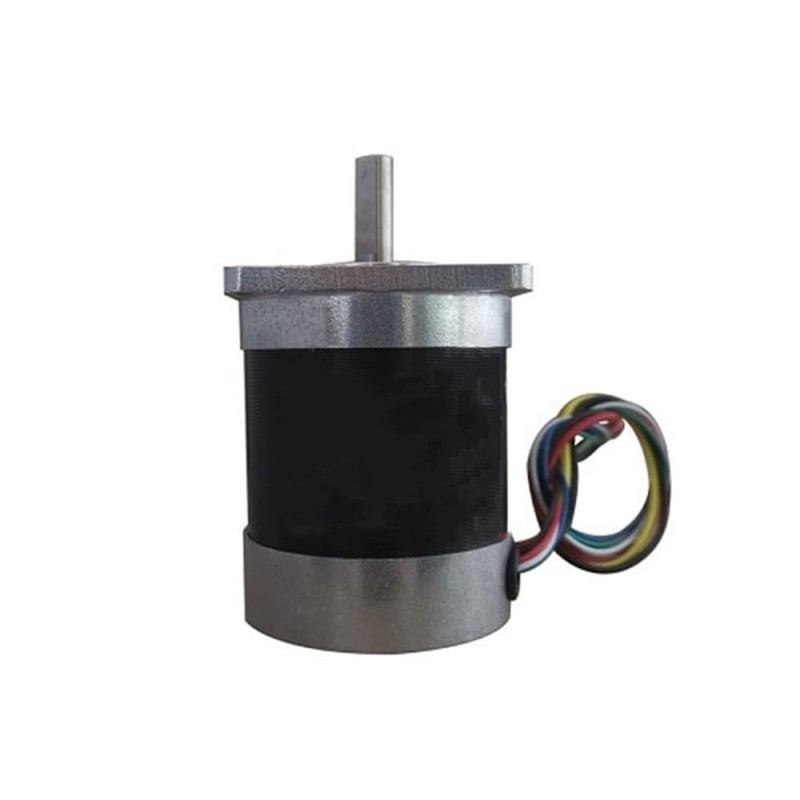

24V 4500RPM 0.37Nm 135W 9.0A 57x57x70mm Brushless DC Motor
- Part Number: 57HS70-2435
- Lead Time: In Stock
- Unit Price: $55.00
- Sales: 6
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 57mm electric motor is a standard 24 voltage brushless DC motor, which generates a high power 135W and a strong torque 0.37Nm at RATED speed 3500RPM. It is suitable for textile machines, robotics, autobikes, cooling fans, pumps and other industrial applications or household appliances.

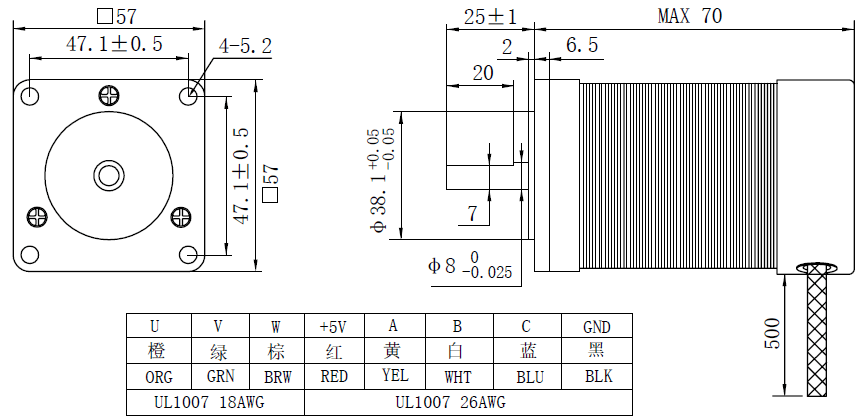

Specifications
- Part Number: 57HS70-2435
- Rated Voltage: 24V
- Rated Curent: 9.0A
- Rated Power: 135W
- No-loaded Speed: 4500RPM
- Rated Speed: 3500RPM
- Rated Torque: 0.37Nm
- Insulation Class: B
- Sensor Type: Hall
- Frame Size: 57x57mm
- Motor Length: 70mm
- Shaft Diameter: Φ8mm
- Shaft Length: 26mm
- D-cut Length: 20mm
- Weight: 0.7KG
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushless |
| Rated Voltage(VDC) | 24 |
| Rated Current(A) | 9.0 |
| Rated Power(W) | 134 |
| Rated Torque(Nm) | 0.37 |
| Rated Speed(RPM) | 4500 |
| No-load Speed(RPM) | 3500 |
| Insulation Class | B |
| Sensor Type | Hall |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 70 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 26 |
| Weight(KG) | 0.7 |
