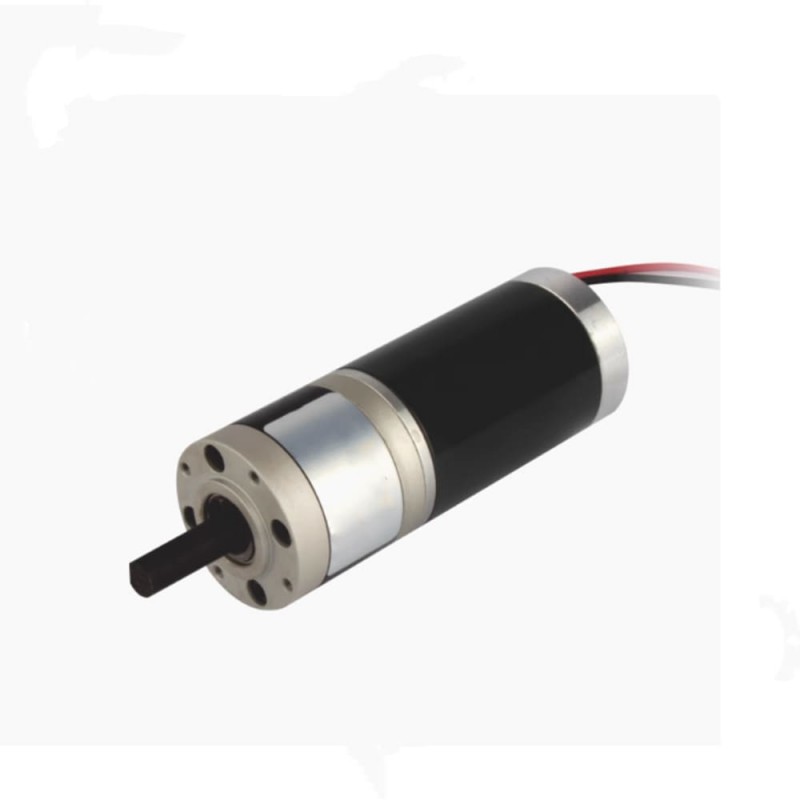

24V 300RPM 0.6Nm Φ38mm Geared DC Motor Reduction Planetary Gearbox
- Part Number: 38AI64-24V-S300
- Lead Time: In Stock
- Unit Price: $50.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This compact 38AI64-24V-S series dc geared motor is a rated voltage 24V diameter Φ38mm round brushed intagrated with a size Φ38mm round planetary gearbox. It leads to speed range of 3RPM to 2000RPM and holding torque upto 4.5Nm. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Part Number: 38AI64-24V-S300
- Rated Voltage: 24VDC
- Rated Power: 33.6W
- Rated Torque: 0.6Nm
- No-load Speed: 300RPM
- Rated Speed: 225RPM
- Rated Current: 1.4A
- Insulation Class: B
- Body Length: 99.5mm
- Shaft Diameter: Φ8mm
- Shaft Length: 25mm
- Dc-ut Length: 20mm
- Weight: 0.7KG
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushed |
| Rated Voltage(VDC) | 24 |
| Rated Power(W) | 33.6 |
| Rated Torque(Nm) | 0.6 |
| Rated Speed(RPM) | 255 |
| No-load Speed(RPM) | 300 |
| Frame Size(mm) | Φ38 |
| Body Length(mm) | 99.5 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 0.7 |
L=35.5mm
