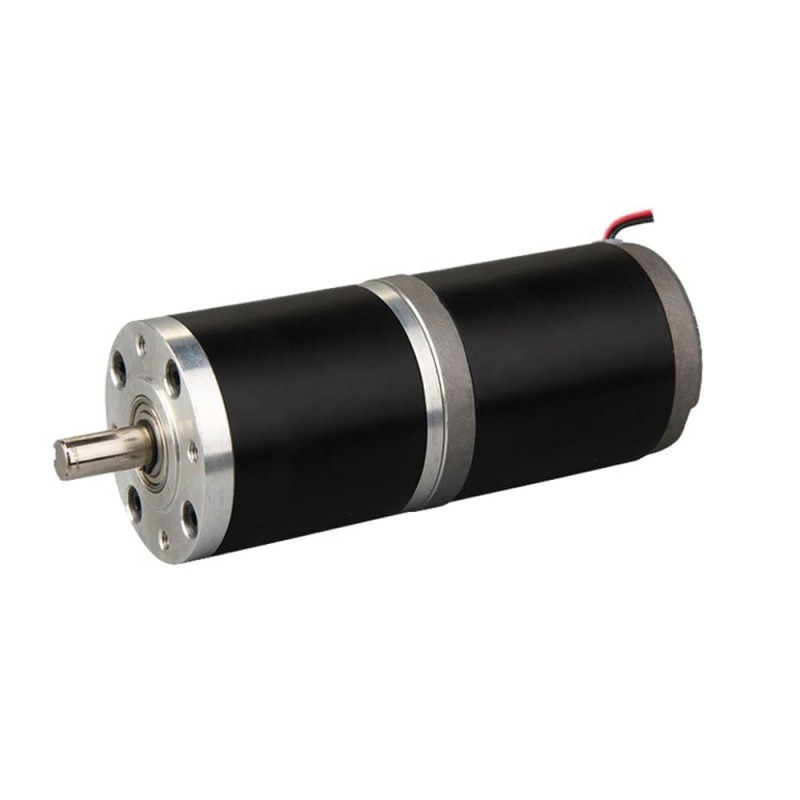

24V 25RPM 35Nm Φ70mm Geared DC Motor Reduction Ratio 139:1 Planetary Gearbox
- Part Number: 70WJ102-24V-PG139
- Lead Time: In Stock
- Unit Price: $120.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This strong 70WJ102-24V-PG series dc geared motor is a rated voltage 24V diameter Φ70mm round brushed intagrated with a size Φ70mm round planetary gearbox. It leads to speed range of 3RPM to 2000RPM and holding torque upto 80Nm. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Part Number: 70WJ102-24V-PG139
- Rated Voltage: 24VDC
- Rated Power: 120W
- Rated Torque: 35Nm
- No-load Speed: 25RPM
- Rated Speed: 20RPM
- Rated Current: 5.4A
- Insulation Class: B
- Body Length: 166.4mm
- Shaft Diameter: Φ15mm
- Shaft Length: 30mm
- Keyway Length: 21mm
- Weight: 2.9KG
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushed |
| Rated Voltage(VDC) | 24 |
| Rated Power(W) | 120 |
| Rated Torque(Nm) | 35 |
| Rated Speed(RPM) | 20 |
| No-load Speed(RPM) | 25 |
| Frame Size(mm) | Φ70 |
| Body Length(mm) | 166.4 |
| Shaft Diameter(mm) | 15 |
| Shaft Length(mm) | 30 |
| Weight(KG) | 2.9 |
L=64.4mm
