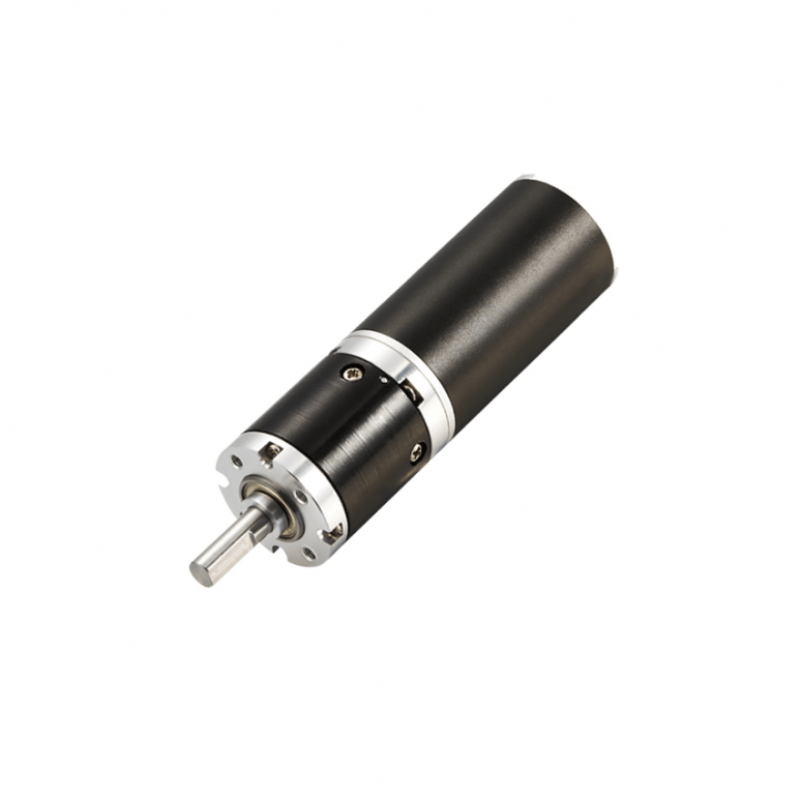

24V 165RPM 0.15Nm Φ22mm Geared Coreless DC Motor Planetary Gearbox
- Part Number: 22HS34-24V-S165
- Lead Time: In Stock
- Unit Price: $45.00
- Sales: 3
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This small 22HS34-PG series dc geared coreless motor is a 24V diameter Φ22mm round brushed intagrated with a size 22mm round planetary gearbox. It leads to speed range of 1RPM to 2000RPM and holding torque upto 1Nm. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Part Number: 22HS34-24V-S165
- Rated Voltage: 24VDC
- Rated Power: 4.0W
- Rated Torque: 0.15Nm
- No-load Speed: 165RPM
- Rated Speed: 148RPM
- Rated Current: 0.18A
- Insulation Class: B
- Body Length: 61.6mm
- Shaft Diameter: Φ4mm
- Shaft Length: 13mm
- D-cut Length: 8mm
- Weight: 0.25KG
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushed |
| Rated Voltage(VDC) | 24 |
| Rated Power(W) | 4 |
| Rated Torque(Nm) | 0.15 |
| Rated Speed(RPM) | 148 |
| No-load Speed(RPM) | 165 |
| Frame Size(mm) | Φ22 |
| Body Length(mm) | 61.6 |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 13 |
| Weight(KG) | 0.25 |
L=28mm
