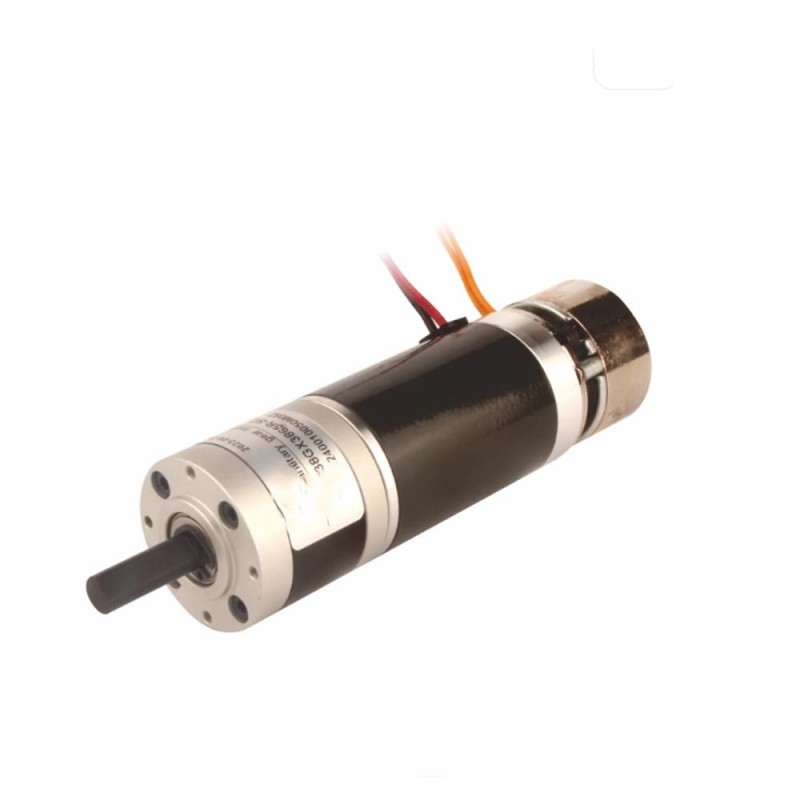

24V 1500RPM 0.1Nm Φ38mm Geared DC Motor Reduction Planetary Gearbox with 24VDC Brake
- Part Number: 38WS64-24V-S1500-YS
- Lead Time: In Stock
- Unit Price: $70.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This compact 38WS64-S-YS series dc geared motor is a rated voltage 24V diameter Φ38mm round brushed intagrated with a size Φ38mm round planetary gearbox. It leads to speed range of 3RPM to 2000RPM and holding torque upto 4.5Nm. A 24V DC power-off brake is installed for special situation. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Part Number: 38WS64-24V-S1500-YS
- Rated Voltage: 24VDC
- Rated Power: 33.6W
- Rated Torque: 0.1Nm
- No-load Speed: 1500RPM
- Rated Speed: 1125RPM
- Rated Current: 1.4A
- Insulation Class: B
- Body Length: 118.5mm
- Shaft Diameter: Φ8mm
- Shaft Length: 25mm
- Dc-ut Length: 20mm
- Brake Voltage: 24VDC
- Weight: 0.8KG
Contact Us
| Brake Specification | |
| Brake Voltage(VDC) | 24 |
| Brush/Brushless Specification | |
| Motor Type | Brushed |
| Rated Voltage(VDC) | 24 |
| Rated Power(W) | 33.6 |
| Rated Torque(Nm) | 0.1 |
| Rated Speed(RPM) | 1125 |
| No-load Speed(RPM) | 1500 |
| Frame Size(mm) | Φ38 |
| Body Length(mm) | 118.5 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 0.6 |
L=27.5mm
