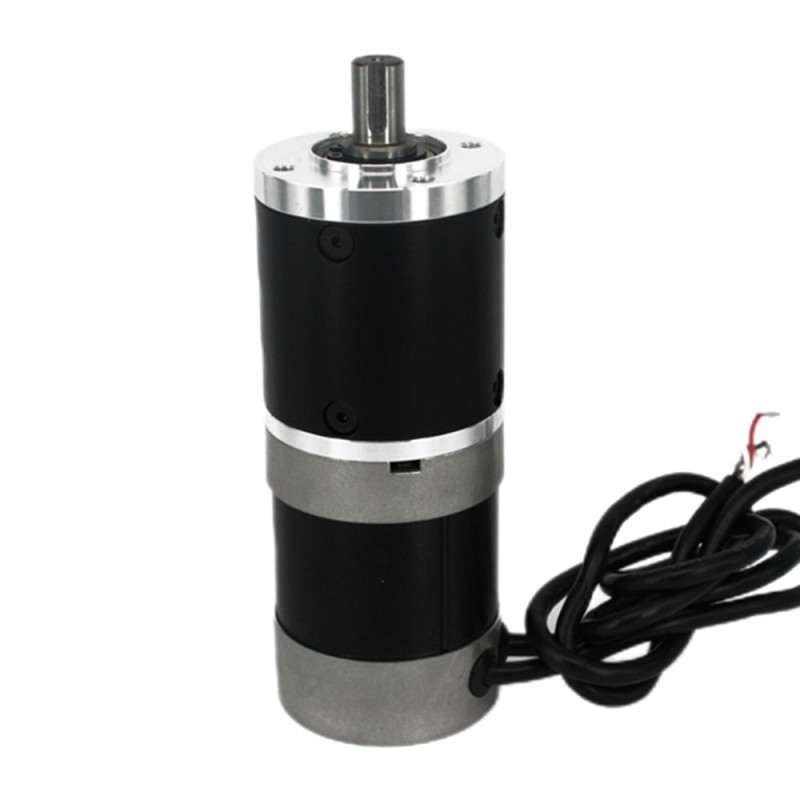

24V 130RPM 7.7Nm 100W Φ57mm Geared Brushless DC Motor Ratio 30:1 Planetary Gearbox
- Part Number: 57BLR75-24V-HG30
- Lead Time: Two Weeks
- Unit Price: $80.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This strong 57BLS75-24V-HG series dc geared motor is a 24V diameter Φ57mm round brushless intagrated with a size 57mm round planetary gearbox. It leads to speed range of 10RPM to 2000RPM and holding torque upto 40Nm. Because of the brushless design, this micro geared motor has higher efficiency, higher power-to-weight ratio, faster response time, longer lifespan, more merits compared to general dc motors. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Part Number: 57BLR75-24V-HG30
- Rated Voltage: 24VDC
- Rated Power: 100W
- Reduction Ratio: 30:1
- Rated Torque: 7.7Nm
- No-load Speed: 160RPM
- Rated Speed: 130RPM
- Rated Current: 6.5A
- Insulation Class: B
- Sensor Type: Hall
- Body Length: 138mm
- Shaft Diameter: Φ12mm
- Shaft Length: 22mm
- Keyway Length: 15mm
- Weight: 1.5KG
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushless |
| Rated Voltage(VDC) | 24 |
| Rated Power(W) | 100 |
| Rated Torque(Nm) | 7.7 |
| Rated Speed(RPM) | 130 |
| No-load Speed(RPM) | 160 |
| Sensor Type | Hall |
| Frame Size(mm) | Φ57 |
| Body Length(mm) | 138 |
| Shaft Diameter(mm) | 12 |
| Shaft Length(mm) | 22 |
| Weight(KG) | 1.5 |
L=63mm
