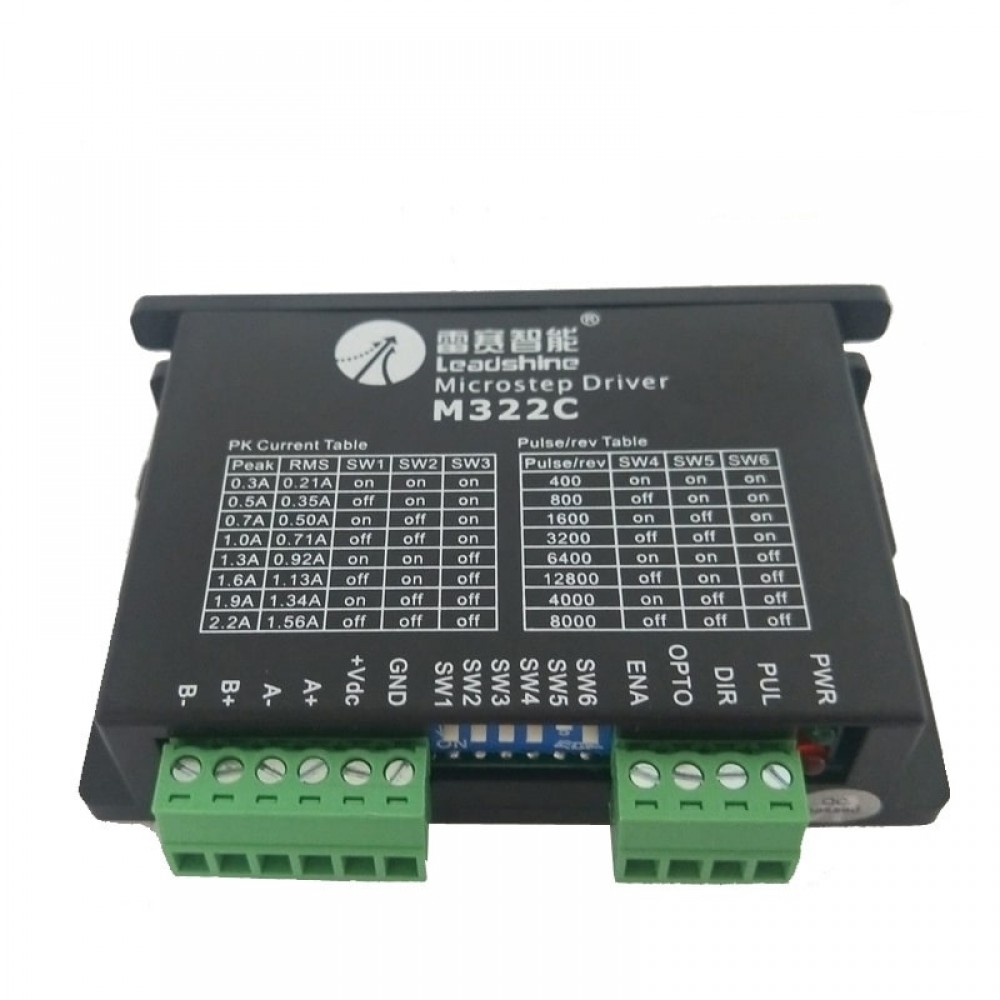

LEADSHINE M322C Digital Stepper Drive 0.2-2.2A 12-30VDC for NEMA 6/8/11/14/17
- Part Number: M322C
- Lead Time: In Stock
- Unit Price: $28.00
- Sales: 23
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This stepper drive M322C is definitely capable of powering 2 phase hybrid stepper motors of NEMA 6, 8, 10, 11, 14, 16 and 17. It provdes a input voltage 12-30VDC and output current 0.3-2.2A.
Key Features
- Pulse & Direction, CW/CCW control
- Protections for over voltage, over current, etc.
- Logic Input Voltage: 5V
- Output Current: 0.2-2.2A(1.57RMS)
- Input Voltage: 12-30VDC
- Pulse Input Frequency: 0-70kHz
- Cooling: Natural cooling or forced cooling
- Ambient Temperature: 0℃-50℃
- Humidity: 40%RH-90%RH
- Operating Temperature: 0℃-50℃
- Storage Temperature: -20℃-65℃
- Dimension: 86x55x20mm
- Weight: 0.2kg
Contact Us
| Drive Specification | |
| Phase Number | 2 |
| Signal Voltage(V) | 5 |
| Input Voltage(VDC) | 12-30 |
| Output Current(A) | 0.2-2.2 |
| Micro-step Resolutions | 200-12800 |
| Encoder Feedback | No |
| Control Mode | Pulse |
| Dimensions(mm) | 86x55x20 |
| Weight(KG) | 0.2 |
