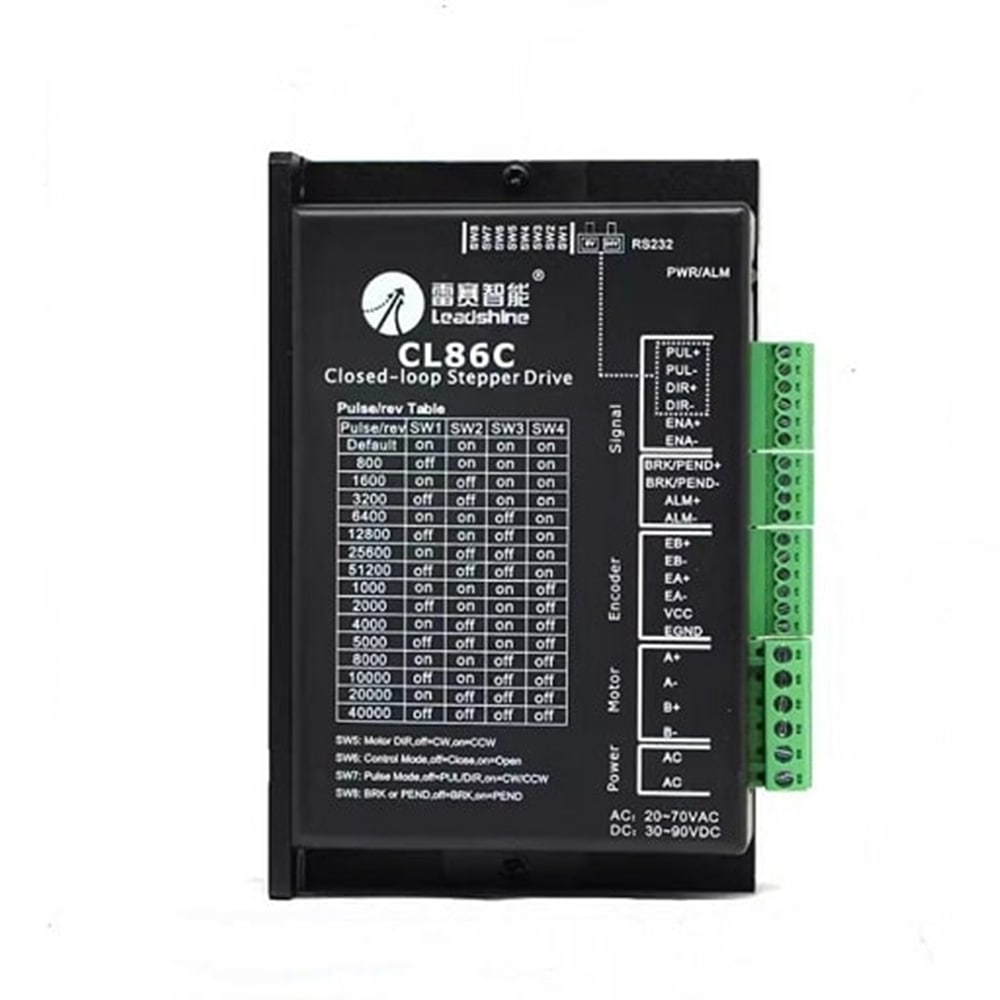

LEADSHINE CL86C Closed Loop Stepper Drive 0-8.0A 20-70VAC/30-90VDC for NEMA 24/34
- Part Number: CL86C
- Lead Time: In Stock
- Unit Price: $70.00
- Sales: 19
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This closed-loop stepper drive CL86C is definitely capable of powering 2 phase hybrid stepper motors of NEMA 24 & 34 with incremental encoder. It provdes a input voltage 20-70VAC/30-90VDC and output current 0-8.0A.
Key Features:
- Brake port interface
- RS232 debugging interface
- Alarm and pend(in-position) signal output
- Pulse & Direction or CW/CCW(double pulse)
- Encoder 0-5000PPR, default setting 1000PPR
- Protections for over voltage, over current, position following error, etc
- Logic Input Voltage: 5V/24V
- Output Current: 0-8.0A(5.6RMS)
- Input Voltage: 20-70VAC/30-90VDC
- Pulse Input Frequency: 0-200kHz
- Cooling: Natural cooling or forced cooling
- Ambient Temperature: 0℃-50℃
- Humidity: 40%RH-90%RH
- Operating Temperature: 0℃-50℃
- Storage Temperature: -20℃-65℃
- Dimension:151x97x53mm
- Weight: 0.6kg
Contact Us
| Drive Specification | |
| Phase Number | 2 |
| Signal Voltage(V) | 5/24 |
| Input Voltage(VAC) | 20-70 |
| Input Voltage(VDC) | 30-90 |
| Output Current(A) | 0-8.0 |
| Micro-step Resolutions | 200-51200 |
| Encoder Feedback | Yes |
| Control Mode | Pulse |
| Dimensions(mm) | 151x97x53 |
| Weight(KG) | 0.6 |
